螺桿泵詳解：核心部件，工作原理與應用（中英文）
螺桿泵的部件——螺桿泵是一種常見的容積式泵。它的另一個名稱是水螺桿泵。螺桿泵是一種利用一個或多個螺桿沿螺桿軸線輸送流體或水的裝置。為了加壓流體并將其輸送到系統內部，這些螺桿相互嚙合。這些螺桿相互纏繞，并在氣缸的空腔內往復運動。螺桿泵由許多部件組成，包括殼體、螺桿（根據螺桿泵的類型，螺桿數量可能從一到五個不等）、軸承、密封件、電機適配器和驅動軸。螺桿泵的設計簡潔明了。
Parts of Screw Pump – A screw pump is a well-known positive displacement pump type. A water screw pump is another name for it. A screw pump is a device that employs one or more screws to transfer fluids or water along the screw’s axis. To pressurize the fluid and transport it inside the system, these screws interlock. These screws are intertwined and reciprocate within the cylinder’s hollow. A screw pump is made up of many components, including a casing, a screw (which may range from one to five screws depending on the kind of screw pump), bearings, a seal, a motor adaptor, and a driving shaft. Screw pumps have a straightforward design.
什么是螺桿泵？
What is a Screw Pump?
顧名思義，螺桿泵的形狀類似于螺紋，通過旋轉螺紋，流體從泵的吸入側流向排出側。由于泵內部間隙相對較小，減少了流體從高壓側滑向低壓側的量，因此泵的容積效率很高，尤其是在輸送粘稠流體時。與任何容積泵一樣，該泵不產生壓力；它僅輸送流體；然而，由于摩擦損失，實際系統會產生背壓。
水或其他流體通過進氣閥進入泵體，并沿著互鎖螺釘線性流向泵的出口側。當流體流過泵體時，螺釘和腔室之間的微小間隙會提高流體壓力。
As the name suggests, the screw pump’s shape is similar to a screw thread, and the fluid passes down the screw thread from the suction side to the discharge side of the pump by turning it. The volumetric efficiency of the pump is great, especially with viscous fluids, due to relatively close clearances inside the pump, which lowers the amount of fluid slippage from the high pressure to the low-pressure side. The pump, like any positive displacement pump, does not create pressure; it merely transfers fluid; yet, owing to friction loss, the real system produces backpressure.
Water or other fluids enter the pump through the intake valve and flow linearly along with the interlocking screws toward the outlet side of the pump. When fluid runs through the pump, the tiny space between the screw and the chamber raises the fluid pressure.
旋轉螺桿泵廣泛應用于各行各業，包括發電、化學加工、航運、煉油廠、碼頭、管道以及油氣開采。這些泵可用于頂管油、高壓燃油噴射、燃油輸送、齒輪和軸承潤滑，以及用于發電區水力發電設施管理的水力發電。
水螺桿泵，也稱為螺桿泵，是一種旋轉部件很少且維護成本極低的機器。借助這類泵，您可以高效地泵送各種粘度、壓力和體積范圍內的固定體積物料。
螺桿泵的結構簡單可靠，制造起來也非常簡單。它總共有三根螺桿，其中兩根為從動螺桿，一根為驅動螺桿。這些螺桿之間留有足夠的空間，用于泵送水或其他流體。流體由電動機輸送至螺桿。
這種泵的殼體具有吸入側和排出側。吸入閥位于泵的底部，排出閥位于頂部。排出側還設有一個止回閥，用于阻止流體回流。泵的設計體現了所有這些特點。
Rotary screw pumps are used in a wide range of industries, including power generation, chemical processing, shipping, refineries, terminals, pipelines, and oil and gas extraction. These pumps are used for jacking oil, high-pressure fuel injection, fuel delivery, gear and bearing lubrication, and water power for applications in the management of hydroelectric facilities in the power-producing zone.
The water screw, also known as a screw pump, is a machine with few spinning components that requires extremely little maintenance. You can efficiently pump fixed volume items in a variety of viscosity, pressure, and volume ranges with the aid of these pumps.
The construction of a screw pump is simple and dependable. It is really simple to create. There are three screw spindles in all, two of which are driven screws and one of which is a driver. There is sufficient room between these screws, which are in charge of pumping water or other fluid. The fluid is supplied to the screws by an electric motor.
A housing having suction and discharge sides is used in this type of pump. The suction valve is found at the bottom of the pump, while the discharge valve is found at the top. It also contains a check valve on the discharge side that stops the fluid from flowing backward. The pump design reflects all of this.

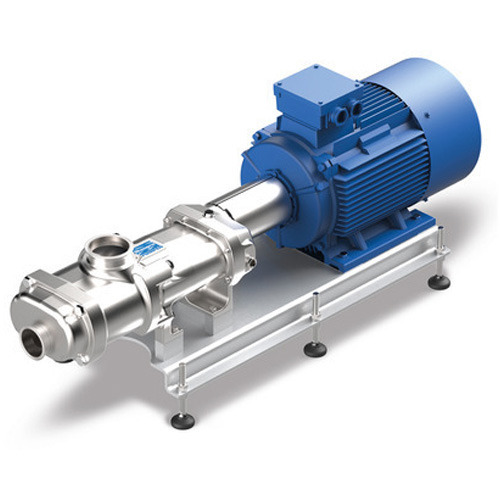

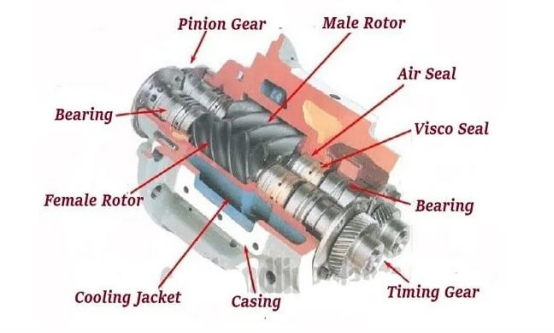

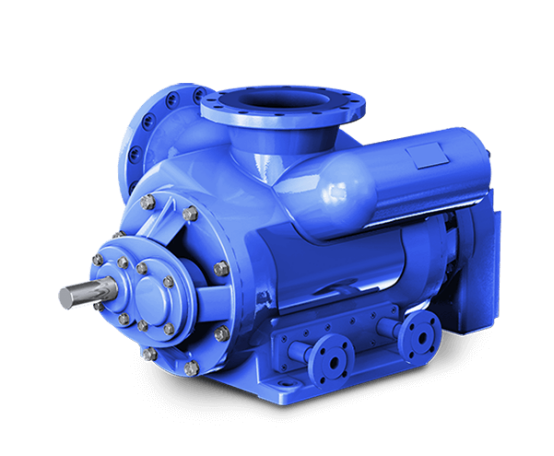

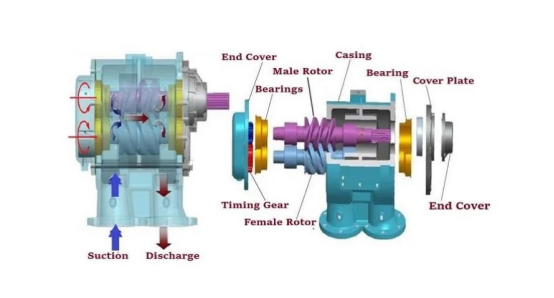

螺桿泵的 7 個主要部件
7 Main Parts of Screw Pump
螺桿泵的 7 個零件分別是：
? 進水口和出水口
? 主動螺桿
? 正時齒輪
? 軸承
? 從動螺桿
? 泄壓閥
? 驅動軸
7 parts of screw pump are:
? Inlet & Outlet Ports
? Driver Screw
? Timing Gear
? Bearings
? Driven Screw
? Pressure Relief Valve
? Driving Shaft
主動螺桿
它是螺桿泵的旋轉部件。主動螺桿連接到電機的驅動軸。它有助于保持流體泵送的恒定體積流量。正時齒輪連接到一端，驅動軸連接到另一端。
從動螺桿由主動螺桿驅動旋轉，驅動螺桿由電機驅動軸驅動。主動螺桿與從動螺桿配合良好。該螺桿采用高強度鋼制造。主動螺桿的主要作用是通過作為中間部件的正時齒輪驅動從動螺桿旋轉。
從動螺桿
從動螺桿也采用高強度鋼制成。由于正時齒輪傳遞的運動，從動螺桿繞其軸線旋轉。其旋轉方向與驅動齒輪相反。該螺桿的間隙面積恒定。這有助于在有限的空間內捕獲水分。
隨著主動螺桿和從動螺桿的同步移動，水量減少并流向出水口。由于這種運動，流體壓力上升。然后，流體通過出水口排出。
正時齒輪
正時齒輪驅動從動螺桿，使陰轉子組件和陽轉子組件之間不發生金屬接觸。它在主動螺桿和從動螺桿之間建立了連接。主動螺桿帶動正時齒輪旋轉，正時齒輪再將旋轉傳遞給從動螺桿。正時齒輪以這種方式驅動螺桿。即使泵短時間關閉，也能確保不會發生此類接觸。
進水口和出水口
螺桿泵的進水口和出水口截然不同。水通過進水口吸入泵內，并通出水口排出。泵最終停止運行時，進水口和出水口的設計可確保泵內有足夠的液體介質。這有助于泵初始液體介質的輸送。因此，即使吸入管是空的或干燥的，也不會快速干涸。
泄壓閥
螺桿泵是一種容積式泵，即使出口關閉，壓力也會累積。壓力累積可能導致嚴重問題，包括泵內部零件損壞以及泵操作員受傷。因此，每個容積式泵都配有安全閥，以保護泵、操作員和任何相關設備。多余的壓力通過此閥返回到吸入口。循環出口流體是另一種常見的降低額外壓力的方法。
軸承
在泵運行過程中，垂直安裝的螺桿泵的上軸承承受著很大的載荷以及軸向和徑向應力。因此，下軸承的載荷很小。
底部軸承的主要功能是保持泵部件對齊。另一方面，螺旋泵、滾柱軸承和滑動軸承平行安裝時，負載相對較低。這是因?yàn)楫a(chǎn)生的徑向力和軸向力相互抵消。
驅動軸
驅動軸將泵組件與驅動電機連接起來。這種連接是通過使用合適的柔性聯軸器來實現的。
驅動軸是許多類型泵的關鍵部件，它來回移動以確保驅動螺桿的運轉。在這種結構中，驅動軸由一組軸向配合的軸承固定。因此，精確的驅動軸對中對于保證泵的使用壽命和軸承至關重要。
Driver Screw
It’s a screw pump’s spinning component. The driver screw connects to the motor’s driving shaft. It aids in the consistent volumetric flow rate of fluid pumping. The timing gear is connected to one end, while the drive shaft is connected to the other.
The driven screw is rotated by the driver screw, which is powered by the motor’s driving shaft. It has a good fit with the driven screw. High-tensile steel is used to make this screw. The driver screw’s main job is to rotate the driven screw through a timing gear, which is an intermediary component.
Driven Screw
High-tensile steel metal is also used for the driven screw. Because of the movement conveyed by the timing gear, it rotates around its axis. It spins in the opposite direction as the driver’s gear. The clearance area of this screw is constant. This aids in catching water inside the restricted space.
The water volume decreases and travels toward the outlet port as the driver and driven screws move together. The fluid’s pressure rises as a result of this movement. It then discharges through the discharge/outlet port.
Timing Gear
The timing gear drives the driven screws in such a way that the female and male rotor assemblies do not make metal-to-metal contact. It establishes a link between the driver and driven screws. The driver screw rotates the timing gear, which then transmits that rotation to the driven screws. It drives screws in this manner. Even if the pump is turned off for a short time, it guarantees that no such connections are made.
Inlet & Outlet Ports
The intake and exit ports of a screw pump are distinct. The water is sucked into the pump through the intake port, and it is discharged through the output port. When the pump ultimately stops, the inlet and output are designed to ensure that there is enough liquid medium. This aids in the delivery of the pump’s initial liquid medium. As a result, the suction tube should not dry out quickly, even if it is empty or dry.
Pressure Relief Valve
Screw pumps are a type of positive displacement pump that builds pressure even while the outlet is closed. This builds up pressure, which can lead to major problems including pump internal part damage and harm to the pump operator. As a result, every positive displacement pump has a relief valve to safeguard the pump, the operator, and any associated gear. Extra pressure is returned to the intake using this valve. Recirculating the exit fluid is another well-known method of reducing extra pressure.
Bearings
During pump operation, the top bearings of a vertically mounted screw pump sustain heavy loads as well as axial and radial stresses. As a result, the load on the lower bearings is minimal.
The bottom bearing’s primary function is to keep the pump’s components aligned. Water screw pumps, roller bearings and slide bearings mounted in parallel, on the other hand, they have relatively low loads. This is due to the fact that the generated radial and axial forces are opposed and cancel one another out.
Driving Shaft
The driving shaft links the pump assembly to the drive motor. This connection is made possible by the use of the proper set of flexible couplings.
This driving shaft is a critical component of many types of pumps, and it goes from side to side to ensure the driver screw’s operation. The driving shaft is secured by a set of bearings that fit in the axial direction in such structures. As a result, accurate driving shaft alignment is critical to preserve the pump’s service life and bearings.
螺桿泵的用途有哪些？
What are the uses of screw pumps?
與離心泵等其他類型的泵相比，螺桿泵通常用于輸送粘度較高的流體。使用螺桿泵輸送這些流體可以節省能源，且設備體積相對較小。由于螺桿之間沒有齒輪嚙合，而是依靠流體潤滑，因此通常使用具有兩個以上螺桿的螺桿泵來輸送潤滑流體。
When compared to other pump types, such as centrifugal pumps, screw pumps are usually utilized on fluids with a greater viscosity. Moving these fluids using screw pumps results in energy-efficient and relatively small equipment. Because the screws are not geared together and rely on the fluid to lubricate the screws, screw pumps with more than two screws are often utilized for lubricating fluids.
雙螺桿泵的螺桿采用齒輪傳動，避免相互接觸，因此可用于輸送非潤滑性流體、化學品、食品等。雙螺桿泵的流量比多螺桿泵（螺桿數量超過兩個）更高。
油基流體、焦油瀝青、化學品、工業粘合劑和乳制品是螺桿泵最常見的應用。
The screws of a twin-screw pump are geared to keep them from touching each other, thus they may be used on non-lubricating fluids, chemicals, and foodstuffs, among other things. Twin-screw pumps have a higher flow rate than multi-screw pumps, which have more than two screws.
Oil-based fluids, tar bituminous, chemicals, industrial adhesives, and dairy products are some of the most common applications for a screw pump.
螺桿泵的優缺點
Advantages and Disadvantages of Screw Pumps
以下是螺桿泵的優點和缺點：
螺桿泵的優點
與離心泵相比，螺桿泵具有一些優勢。首先，由于泵送的液體沿軸向流動，因此不會產生湍流。這可以防止?jié)獬硪后w中形成氣泡。
螺桿泵可用于所有流體
? 這些泵易于維護。
? 結構緊湊
? 可能會干涸
? 運行安靜
? 這些泵提供穩定、無脈沖的流體流動。
? 該泵具有更高的容積效率。
? 高可靠性
? 維護成本極低
? 高穩健性
? 自吸能力
? 它對灰塵顆粒和水蒸氣有很強的抵抗力。
? 螺桿泵不會泵送流體的污染物。
? 您還可以使用螺桿泵泵送高粘度液體，而不會損失流量。
? 它具有無摩擦旋轉
? 它以極高的速度泵送流體
? 效率非常高
? 低脈動
螺桿泵的缺點
? 對于小型企業來說，安裝需要花費很多錢。
? 為了輸送輕質氣體，該泵需要?dú)怄?zhèn)。
? 由于沒有氣鎮，對于輕氣體來說，它的抽速相對較慢，最終壓力較低。
The following are the benefits and drawbacks of a screw pump:
Advantages of Screw Pump
Compared to centrifugal pumps, screw pumps have some benefits. First, there is no turbulence as the pumped liquid flows axially. This prevents bubbles from forming in thick liquids.
Screw Pumps can be used for all fluids
? These pumps have easy maintenance.
? It has a compact construction
? It can run dry
? These have a quiet operation
? These pumps provide a steady, non-pulsing flow of fluid.
? This pump has higher volumetric efficiency.
? High reliability
? It needs very low maintenance
? High robustness
? Self-priming ability
? It is very resistant to dust particles and water vapors.
? The contamination of the fluid is not pumped by a screw pump.
? You can also pump a high viscous liquid with screw pumps without losing the flow.
? It has a frictionless rotation
? It pumps the fluid at a very high speed
? It has very high efficiency
? Low pulsations
Disadvantages of Screw Pump
? Installation costs a lot of money for small businesses.
? To transmit light gas, this pump requires a gas ballast.
? Without a gas ballast, it has a relatively slow pumping speed and a lower final pressure for light gasses.
螺桿泵的應用
Applications of Screw Pumps
? 場地內有多臺潤滑和液壓設備。大型設備需使用螺桿泵供油。
? 螺桿泵更適合泵送較重的油。它們甚至可以泵送粘度更高、流速更快的液體。
? 這些泵能夠同時泵送液體和氣體。因此，這些泵適用于各種泵送業務。
? 石油和天然氣、采礦和工業行業均采用這種泵。
? 陶瓷，油漆，食品，化學品和造紙行業均使用這些泵。
? There are several lubricating and hydraulic machines on the premises. To provide oil to huge equipment, utilize screw pumps.
? Screw pumps are better for pumping heavier oils. They can even pump liquids with higher viscosity and higher flow rates.
? These pumps are capable of pumping both liquid and gas at the same time. As a result, these pumps are used in a variety of pumping businesses.
? The oil and gas, mining, and industrial industries all employ this pump.
? Ceramics, paint, food, chemicals, and paper industries all employ these pumps.
螺桿泵需要啟動嗎？
Is Priming Necessary for Screw Pumps?
螺桿泵無需啟動，因?yàn)樗鼈兪亲晕奖谩１脙?nèi)產生的真空使泵能夠自吸。如果螺桿泵干涸并繼續使用，則會損壞泵。
Screw pumps require no priming since they are self-priming. The vacuum created within the pump allows the pump to self-prime. It will damage a screw pump if it becomes dry and continued to be used.
螺桿泵中的正時齒輪是什么？
What Is the Timing Gear In a Screw Pump?
正時齒輪用于驅動從動齒輪，以避免陽轉子組件和陰轉子組件之間發生金屬接觸。此外，它還能確保即使泵暫時空轉，也不會發生這種接觸。
Timing gears are made to drive driven gears in a manner that avoids metal-to-metal contact between male and female rotor assemblies. Also, it ensures that such contact does not occur, even if the pump runs dry temporarily.
關于螺桿泵不同部件的常見問題解答
FAQ Section about Different Parts of Screw Pump
螺桿泵的運行遵循什么原理？
- 正排量原理控制著螺桿泵部件的運行。
Which principle governs the operation of a screw pump?
- The positive displacement principle governs the operation of the parts of the screw pump.
螺桿泵有可能干轉嗎？
- 是的，螺桿泵的構造使其可以干運轉而不會造成任何損壞或啟動問題。
Is it possible for a screw pump to run dry?
- Yes, a screw pump is built in such a manner that it may run dry without causing any damage or priming problems.
螺桿泵和齒輪泵有什么區別？
- 齒輪泵和螺桿泵的根本區別在于，螺桿泵比齒輪泵產生的振動、噪音和脈動流量更小。螺桿泵的使用壽命也比齒輪泵更長。
What is the distinction between a screw and a gear pump?
- The fundamental distinction between gear and screw pumps is that a screw pump produces less vibration, noise, and pulsing flow than a gear pump. Screw pumps also outlast gear pumps in terms of service life.
