REXROTH閥KBPS.8A系列技術參數
Technical data | |
general | |
Weight | 0.45 kg |
Installation position | Any - if it is ensured that no air can collect upstream the valve. |
Ambient temperature range | –20 to +120 °C |
Storage temperature range | –20 to +80 °C |
hydraulic | |
Maximum operating pressure | 420 bar |
Maximum admissible return flow pressure | 210 bar |
Hydraulic fluid temperature range | –20 to +80 °C |
Viscosity range | 15 to 380 mm 2 /s |
Maximum permitted degree of contamination of the hydraulic fluid - cleanliness class according to ISO 4406 | Class 20/18/15 |
Hysteresis | < 5 % of the max. set pressure |
Range of inversion | < 0.5 % of the max. set pressure |
Response sensitivity | < 0.5 % of the max. set pressure |
Manufacturing tolerance of the command value pressure characteristic curve | Command value 100 %: < 5 % of the max. set pressure |
Step response (Tu + Tg ) 0 → 100 % and/or 100 % → 0 | 70 ms (depending on the system) |
electric | |
Supply voltage | 12 DC V, 24 DC V, "-8" / 24 DC V |
Maximum control current | 1760 mA, 1200 mA, 800 mA |
Coil resistance | Cold value at 20 °C: 2.3 Ω, 4.8 Ω, 11.5 Ω |
Switch-on duration | 100% |
Maximum coil temperature | 150℃ |
Protection class according to DIN EN 60529 | Version "K4": IP 65 with mating connector mounted and locked |
Control electronics (separate order) | Plug-in proportional amplifier type VT-SSPA1 |
Design according to VDE 0580 |
REXROTH閥KBPS.8A系列介紹
比例溢流閥
直動式，遞增特性曲線
組件尺寸 8
組件系列 A
最大工作壓力 420 bar
最大流量 2 升/分鐘
特性
– 插裝閥
– 安裝孔 R/T-8A
– 用于限制系統壓力的直動式比例閥
– 適用于移動和工業應用
– 通過帶中心螺紋和可拆卸線圈的比例電磁鐵操作
– 可在控制電子元件外部微調控制值壓力特性曲線
– 斷電時，最小設定壓力
– 控制電子元件
Proportional pressure relief valve
direct operated,increasing characteristic curve
Component size 8
Component series A
Maximum operating pressure 420 bar
Maximum flow 2 l/min
Features
– Cartridge valve
– Mounting cavity R/T-8A
– Direct operated proportional valve for limiting a system pressure
– Suitable for mobile and industrial applications
– Operation by means of proportional solenoid with central thread and detachable coil
– Fine adjustment of the command value pressure characteristic curve possible from the outside at the control electronics
– In case of power failure, minimum set pressure
– Control electronics

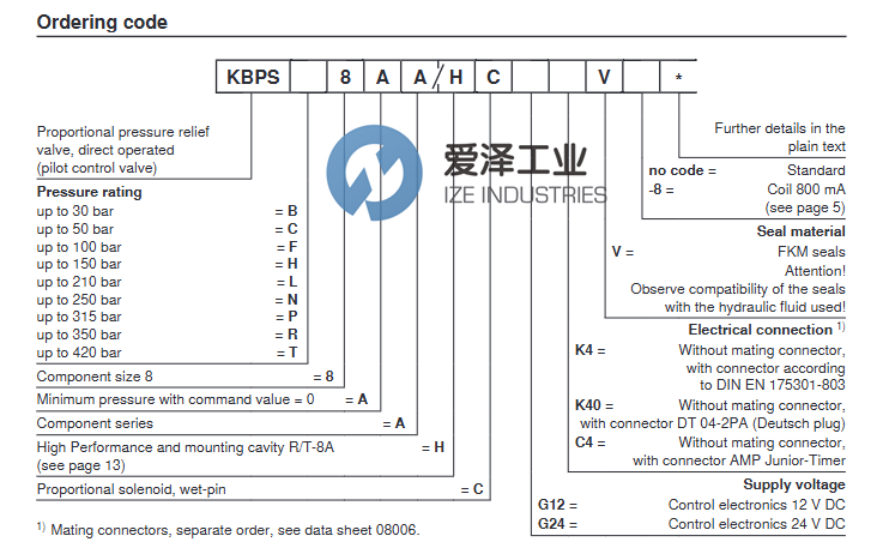

REXROTH閥KBPS.8A系列選型
REXROTH閥KBPS.8A系列其他常用型號：
REXROTH KBPSF8AA/HCG24K4V R901049817
REXROTH KBPSC8AA/HCG24K4V R901049804
REXROTH KBPSL8AA/HCG24K4V R901027408
REXROTH KBPSN8AA/HCG24K4V R901049877
REXROTH KBPSP8AA/HCG24K4V R901047007
REXROTH KBPSR8AA/HCG24K4V R901049860
REXROTH KBPST8AA/HCG24K40V R901045871
REXROTH KBPSL8AA/HCG24K4V-8 R901053398
REXROTH KBPSP8AA/HCG24C4V-8 R901132980
REXROTH KBPSR8AA/HCG24C4V-8 R901128882
REXROTH Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
