WALDES TRUARC于2009年被Rotor Clip收購，WALDES TRUARC數十年來的原有設備、工具和質量文檔，這些都使其成為業內值得信賴的品牌。
WALDES TRUARC擋圈5100-1000技術參數
| |

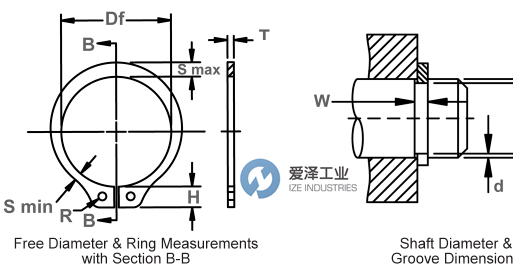

Part Data | |
Housing or Shaft | Shaft |
Axial or Radial | Axial |
Shaft Diameter Ds | 10.000 inches |
Ds mm | 254.000 mm |
Groove Diameter Dg | 9.567 - 9.583 - inches |
Groove Width W | 0.209 - 0.217 - inches |
Groove Depth D | 0.212 inches |
Free Diameter Df | 9.225 - 9.405 - inches |
Thickness T | 0.182 - 0.192 - inches |
Lug Height H | 0.723 - 0.747 - inches |
Maximum Section S Max | 0.660 - 0.690 - inches |
Minimum Section S Min | 0.352 - 0.382 - inches |
Hole Diameter R | 0.182 - 0.207 - inches |
Weight Per 1000 Pcs. | 910.000 lbs. |
Edge Margin Y Min. | inches |
Clearance Dia. Expanded Over Shaft L1 | 11.600 inches |
Clearance Dia. Released In Groove L2 | 11.200 inches |
Gaging Dia. Gd Max | inches |
Hardness ST | 40.000 - 47.000 - HRC |
Hardness SS | 44.000 - 51.000 - HRC |
Hardness BC | 37.000 - 43.000 - HRC |
Interchange Waldes Truarc | 5100 1000 |
Interchange IRR | 3100 1000 |
Interchange Anderton | N1400 1000 |
Interchange Mil Or Aero | MS16624D 1000 |
WALDES TRUARC擋圈5100-1000介紹
軸向組裝，外部。一旦安裝到軸的凹槽中，從凹槽中伸出的環部分（也稱為肩部）將組件固定到位。
Axially Assembled, External. Once installed in the groove of a shaft, the portion of the ring protruding from the groove (also called a shoulder) holds an assembly in place.
WALDES TRUARC擋圈其他常用型號：
WALDES TRUARC 5100-1000
WALDES TRUARC 5100-975
WALDES TRUARC 5100-950
WALDES TRUARC 5100-925
WALDES TRUARC 5100-900
WALDES TRUARC 5100-875
WALDES TRUARC 5100-850
WALDES TRUARC 5100-825
WALDES TRUARC 5100-800
WALDES TRUARC 5100-775
WALDES TRUARC 5100-750
WALDES TRUARC 5100-725
WALDES TRUARC 5100-700
