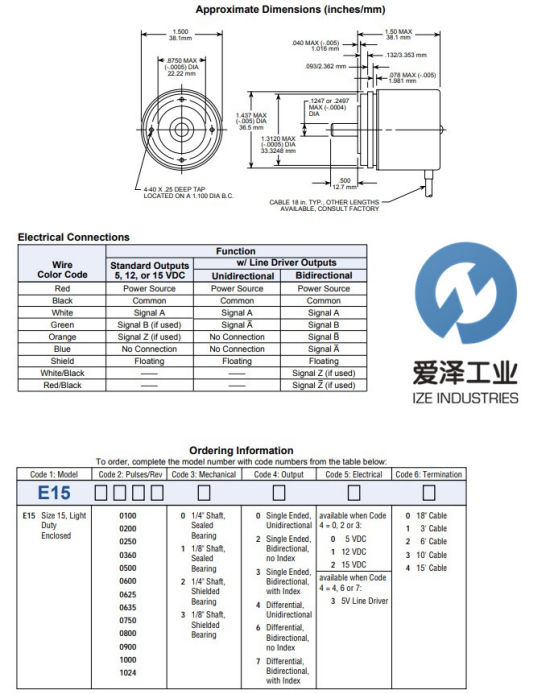

美國DYNAPAR編碼器E15系列參數說明
The Series E15 is a totally enclosed, easy-toinstall,
incremental encoder designed for
commercial and industrial applications with
limited space. It is an industry-standard Size
15 (1.5" diameter), servo or face-mount unit
with a rugged, metal housing.
The Series E15 includes precision bearings, an
O-ring seal, and a choice of 1/4" or 1/8"
diameter stainless steel shaft.
Series E15 incorporates the latest in microelectronic
packaging, LED light sources, and
matched sensors. Outputs are designed to be
compatible with most 5V TTL circuits with
options for higher voltage 12 and 15 VDC.
Shielded cable is standard. Line drivers with
complementary outputs are available for longer
cable runs and/or higher ambient electrical
noise immunity.
Electrical
Code: Incremental
Resolution: 100 to 1024 PPR (pulses/revolution)
Format: Two channel quadrature (AB) withoptional Index (Z) outputs
Phase Sense: A leads B for CW shaft rotationas viewed from the shaft end of the encoder
Accuracy: ±3 x (360° ÷ PPR) or ± 2.5 arc-minworst case pulse to any other pulse, whicheveris less
Quadrature Phasing: 90° ± 36° electrical
Symmetry: 180° ± 18° electrical
Index: 360° ± 90° electrical
Waveforms: Squarewave with rise and falltimes less than 1 microsecond into a load
capacitance of 1000 pf
Input Power:
TTL: 5 VDC ± 5% at 135 mA max.;
Line Driver: 5 VDC ± 5% at 210 mA max.;
CMOS: 12 or 15 VDC ± 10% at 100 mA max.;
not including output loads
Outputs:
5 VDC TTL:
Logic "1" VOH: 2.5 V min. at 10 TTL gate load or
10 mA source;
Logic "0" VOL: 0.4 V max. at 20 mA sink
5 VDC Line Driver: 75158 or equivalent, 40 mA
sink and source
12 or 15 VDC CMOS:
Logic "1" VOH: Vcc–1.5V min. at 200 ? load or
10 mA source;
Logic "0" VOL: 0.4 V max. at 20 mA sink
Frequency Response: 100 kHz min. data
channels; 50 kHz min. Index channel
Mechanical
Bearing Life: (16 x 106 ÷ RPM) hours at max.
load
Shaft Loading: 5 lb. radial, 3 lb. axial max.
Shaft Speed: 5,000 RPM max.
Starting Torque:
Shielded Bearing: 0.1 oz-in max.at 25 °C
Sealed Bearing: 0.9 oz-in max.at 25 °C
Running Torque:
Shielded Bearing: 0.08 oz-in max.at 25 °C
Sealed Bearing: 0.8 oz-in max.at 25 °C
Moment of Inertia: 4.5 x 10–6 oz–in–sec2
Weight: 3.0 oz. max.
Environmental
Operating Temperature: 0 to +70 °C
Storage Temperature: –25 to +70 °C
Humidity: to 98% without condensation
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof)
