美國DYNAPAR編碼器H81024ZT012RM尺寸圖及選型參數表

美國DYNAPAR編碼器H81024ZT012RM特性描述

ELECTRICAL

Input Voltage Requirement: 5-15 VDC, 15-26 VDC

Current Requirement:

With Electrical Option L: 45mA typical per sensor

module plus line driver load

With Electrical Option R and 5: 65mA typical per

sensor module plus line driver load

Output Signals:

4428 Differential Line Driver: 150mA, sink or source

Noise Immunity: Tested to EN61326-1

Electrical Immunity: Reverse polarity and short

circuit protected

Connector: 10 pin industrial duty latching, sealed

NEMA 4 &12, IP65; MS connector or pig-tail

MECHANICAL

Bore Diameter: 1-1/8” to 4-1/2”, straight or

tapered bore

Mounting Configuration: Hollow Shaft mount

with Anti-Rotation Tether

Shaft Speed: 3,600 RPM

Shaft Length Required: 2.5” min

Acceleration Rate: 3,600 rpm/sec max

Allowable Shaft End-Play: 0.25” (Subject to

RPM Limitation)

Allowable Shaft Runout: 0.010” TIR (Subject to

RPM Limitation)

Housing Material: Cast Iron/Stainless Steel

Weight: 30 lbs

ENVIRONMENTAL

Operating Temperature Range: -20°C to +70°C

Storage Temperature Range: -40°C to +120°C

Shock (Sensor Module): 30 G’s Min

Vibration: 18 G’s @ 5-2000 Hz spectrum

Humidity: Up to 98% (non-condensing)

美國DYNAPAR編碼器H81024ZT012RM等常用型號匯總

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：

DYNAPAR編碼器H81024LM481LC

DYNAPAR編碼器H81024LP012LM

DYNAPAR編碼器HS851024LP012LM

DYNAPAR編碼器H81024LP021LC

DYNAPAR編碼器H81024LP092LC

DYNAPAR編碼器HS851024T09T2LD

DYNAPAR編碼器H81024LP661LC

DYNAPAR編碼器HS851024T66T1LD

DYNAPAR編碼器H81024LT011LC

DYNAPAR編碼器HS851024T011LD

DYNAPAR編碼器H81024LT011RC

DYNAPAR編碼器HS851024T011LDR

DYNAPAR編碼器H81024LT012LC

DYNAPAR編碼器H81024T012LD

DYNAPAR編碼器H81024LT041LC

DYNAPAR編碼器HS851024T041LD

DYNAPAR編碼器H81024LT041LM

DYNAPAR編碼器H81024LT051LC

DYNAPAR編碼器HS851024T051LD

DYNAPAR編碼器H81024LT051RC

DYNAPAR編碼器HS851024T051LDR

DYNAPAR編碼器H81024LT052LC

DYNAPAR編碼器HS851024T052LD

DYNAPAR編碼器H81024LT081LC

DYNAPAR編碼器HS851024T081LD

DYNAPAR編碼器H81024LT091LC

DYNAPAR編碼器HS851024T091LD

DYNAPAR編碼器H81024LT092LC

DYNAPAR編碼器H81024T092LD

DYNAPAR編碼器H81024LT0E2LC

DYNAPAR編碼器HS851024TE2LD

DYNAPAR編碼器H81024LT101LC

DYNAPAR編碼器HS851024T101LD

DYNAPAR編碼器H81024LT102LC

DYNAPAR編碼器H81024LT121LC

DYNAPAR編碼器H81024LT141LC

DYNAPAR編碼器H81024LT142LX01

DYNAPAR編碼器HS851024-T142LDH(M125)

DYNAPAR編碼器H81024LT161LC

DYNAPAR編碼器HS851024T161LD

DYNAPAR編碼器H81024LT191LC

DYNAPAR編碼器HS851024T191LD

DYNAPAR編碼器H81024LT211LC

DYNAPAR編碼器H81024LT392LC

DYNAPAR編碼器H81024LT392RC

DYNAPAR編碼器H81024LT412LC

DYNAPAR編碼器HS851024T412LD

DYNAPAR編碼器H81024LT442LC

DYNAPAR編碼器H81024ZM481LC

DYNAPAR編碼器HS851024ZM481LD

DYNAPAR編碼器H81024ZM551LC

DYNAPAR編碼器HS851024ZM551LD

DYNAPAR編碼器H81024ZP012LC

DYNAPAR編碼器H81024ZP691RM

DYNAPAR編碼器H81024ZT011LC

DYNAPAR編碼器HS851024ZT011LD

DYNAPAR編碼器H81024ZT011RC

DYNAPAR編碼器H81024ZT012LC

DYNAPAR編碼器HS851024ZT012LD

DYNAPAR編碼器H81024ZT031LC

DYNAPAR編碼器H81024ZT052RC

DYNAPAR編碼器H81024ZT052RP

DYNAPAR編碼器H81024ZT061LC

DYNAPAR編碼器HS851024ZT061LD

DYNAPAR編碼器H81024ZT0815M

DYNAPAR編碼器H81024ZT082LC

DYNAPAR編碼器H81024ZT091LC

DYNAPAR編碼器H81024ZT092LC

DYNAPAR編碼器HS851024ZT092LD

DYNAPAR編碼器H81024ZT101LC

DYNAPAR編碼器HS851024ZT101LC

DYNAPAR編碼器H81024ZT102LP

DYNAPAR編碼器HS851024ZT102LDP

DYNAPAR編碼器H81024ZT1115C

DYNAPAR編碼器H81024ZT172LM

愛澤工業專業提供美國DYNAPAR編碼器H81024ZT012RM等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于美國DYNAPAR編碼器H81024ZT012RM的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。

If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:www.www.jguvm.cn.

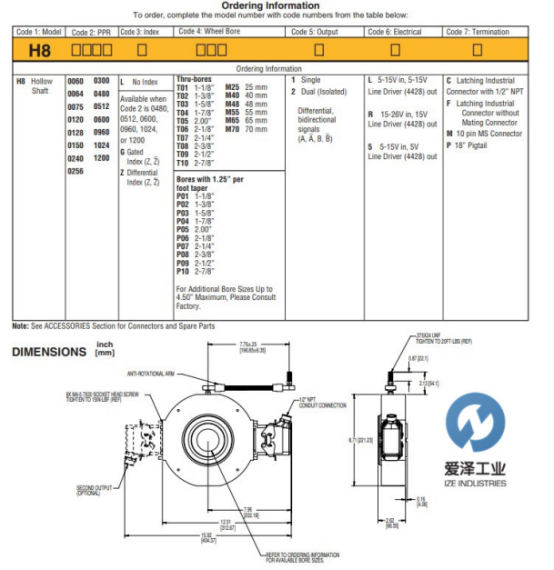

美國DYNAPAR編碼器H81024ZT012RM尺寸圖及選型參數表
