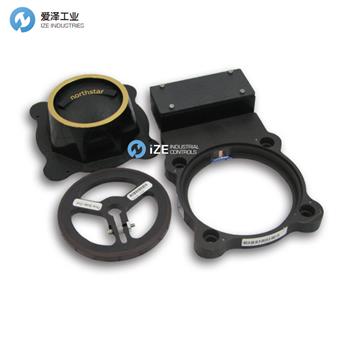

美國NORTHSTAR編碼器S50512LJ04BLC

Specifications

Item Number:  S50512LJ04BLC

Brand: NorthStar - Danaher Controls

Item Category: Encoders

Subcategory: Incremental

Series: SL56

Resolution (PPR): 512

Shaft/Bore Size: 5/8 in

Duty Classification: Heavy

Mounting Style: Bearingless

Output Type: Differential

Termination: Conduit Box

Input Voltage: 5~15 VDC

Motor Type: 56C

Bearings: No

Signal Direction: Bidirectional

Operating Temperature: -40 to 90 Degrees C

Commutating: No

Incremental Channels: Dual with Complimentary

Indexed (Marker): No

Bolt Circle: 5.88 in

Electrical Output Type: Line Driver

Output Voltage: 5~15 VDC

LED Output Indicator: No

Approvals: CE

RoHS: Yes

Slim Tach SL56

STANDARD OPERATING CHARACTERISTICS

Code: Incremental, Magnetic

Pulses per Revolution: 64-1024 PPR

Phasing Sense: A leads B for Counter-Clockwise

rotation (CCW) viewing encoder-mounted end

Quadrature Phasing: 90° ± 22°

Symmetry: 180° ± 54°

Index: 270°, ungated (optional gated to

falling B edge)

Number of Output Modules: Single or Dual

ELECTRICAL

Input Voltage Requirement: 5-15 or 5-26 Volts DC

Current Requirement:

With Electrical Option L or H: 45 mA typical per

sensor module plus line driver load

With Electrical Option V or 5: 65 mA typical per

sensor module plus line driver load

Output Signals:

IC-WE Differential Line Driver: 150mA, sink or source

4428 Differential Line Driver: 150mA, sink or sourc

ELECTRICAL (CONT.)

Frequency Response: 0 - 120kHz Data & Index.

Please refer to our performance curve diagram for

frequency and temperature details**

Noise Immunity: Tested to EN61326-1

Electrical Immunity: Reverse polarity and short

circuit protected

Connector: 10 pin industrial duty latching, sealed

NEMA 4 &12, IP65; MS connector or pig-tail

MECHANICAL

Bore Size: 5/8” to 3.75”

Mounting Configuration: 4.5” 56C-Face or 140

C-Face Mount for NEMA MG1 Standards

Max. Shaft Speed: 5,000 RPM

Shaft Length Required: 0.7” min

Allowable Shaft End-Play: ± 0.045”

Allowable Shaft Runout: 0.002” TIR

Acceleration Rate: 12,000 rpm/sec max

Housing Material: Cast Aluminum

Weight: 7 lbs

ENVIRONMENTAL

Operating Temperature Range:

Standard: -40°C to +90°C

Extended: -40°C to +100°C

Storage Temperature Range: -40°C to +120°C

Shock (Sensor Module): 30 G’s Min

Vibration: 18 G’s @ 5-2000 Hz spectrum

Humidity: Up to 98% (non-condensing)

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04CVE

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04BLF

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04ELS

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04BVS

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04CVC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04CLF

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04CVS

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04MVE

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ05BLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04PVF

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ05BLS

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ06PLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ06CLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ07BLS

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ06PVF

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ07CLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ05CLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ06BLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ21CLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512ZJ04CLC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512ZJ04CLE

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512LJ04ELC

NORTHSTAR/DYNAPAR/HENGSTLER編碼器 IZE_INDUSTRIES  S50512ZJ04PLC

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于美國NORTHSTAR編碼器S50512LJ04BLC的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。

有關美國NORTHSTAR編碼器S50512LJ04BLC更詳細的信息或者購買美國NORTHSTAR相關產品，請聯系愛澤工業。
