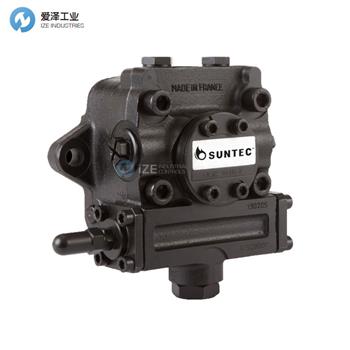

SUNTEC泵TA2A40107介紹
General | |
Mounting | Flange mounting |
Connection threads | Cylindrical according to ISO 228/1 |
Inlet and return | G 1/2 |
Nozzle outlet | G 1/2 |
Pressure gauge port | G 1/4 |
Vacuum gauge port | G 1/4 |
Shaft | ? 12 mm |
By-pass plug | Inserted in vacuum gauge port for 2 pipe system;to be removed with a 3/16" Allen key for 1 pipe system |
Weight | 5,4 kg (TA2) - 5,7 kg (TA3) |
Hydraulic data | |
Nozzle pressure ranges | 30 : 7 - 30 bars |
Delivery pressure | 30 bars |
Operating viscosity | 2 - 75 mm2/s (cSt) |
Oil temperature | 0 - 150°C in the pump |
Inlet pressure | light oil : 0,45 bars max. vacuum to prevent air separation from oil heavy oil : 5 bars max. |
Return pressure | light oil : 5 bars max. |
Rated speed | 3600 rpm max. |
Torque (@ 40 rpm) | 0,3 N.m |
Choice of heater | |
Cartridge | ? 12 mm |
Fitting | according to EN 50262 |
Rating | 80-100 W |
SUNTEC泵TA2A40107產品特點及選型
帶集成壓力調節器的泵，適用于工業應用，配有預熱器位置。
應用：
重油，輕油，B10加熱油/生物燃料混合物（根據DIN V51603-6定義）和煤油，
單管或雙管系統。

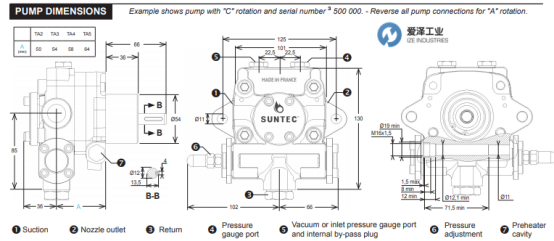

SUNTEC泵TA2A40107尺寸圖
愛澤工業(IZE INDUSTRIES)特價經銷、常用SUNTEC泵型號：
SUNTEC TA2A40107
SUNTEC TA2C40107
SUNTEC TA5C30107
SUNTEC TA2A40107
SUNTEC TA3A40107
SUNTEC TA3C40107
SUNTEC TA4C40107
SUNTEC Pump EW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUNTEC泵TA2A40107的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SUNTEC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
