REXROTH OIL CONTROL閥VBSN-16A系列技術參數
Technical data | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 200 (53) |
Max. internal leakage (*) drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) | 108-122 (80-90) |
Weight kg (lbs) | 0.82 (1.81) |
Cavity | CA-16A-3C |
Seal kit (**) | code RG16A9010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation | No restrictions |
Pressure setting: | at least 1.3 times the load induced pressure. |
(*) At 70% of pressure setting | |
(**) Only external seals for 10 valves |

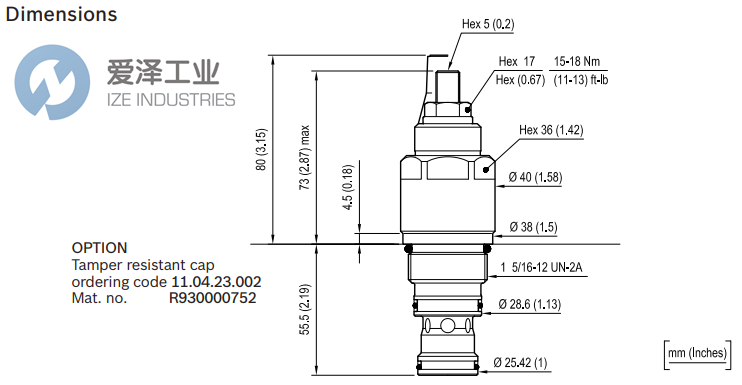

REXROTH OIL CONTROL閥VBSN-16A系列技術尺寸

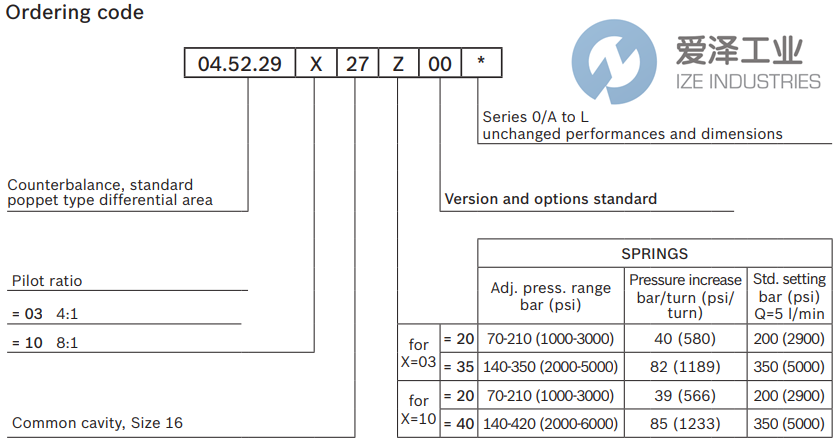

REXROTH OIL CONTROL閥VBSN-16A系列選型
REXROTH OIL CONTROL閥VBSN-16A系列其他常用型號：
REXROTH OIL CONTROL 045229032720000 R901096047
REXROTH OIL CONTROL 045229032735000 R901096048
REXROTH OIL CONTROL 045229102720000 R930000797
REXROTH OIL CONTROL 045229102740000 R901096049
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥045229032720000 R901096047的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
REXROTH OIL CONTROL閥045229032720000 R901096047技術參數及選型
