REXROTH閥VBB2-22系列技術參數
Technical data | |
Max. operating pressure port 1 (P) | 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 50 bar (725 psi) |
Max pilot pressure port 3 Pst | 30 bar (435 psi) |
Arithmetic gera ratio | 21:1 |
Max. flow | 240 l/min (63,40 gpm) |
Max. internal leakage1) | 45 drops/min. |
Fluid temperature range | -20 to 120 °C (-4 to 248 °F) (Viton) |
Installation torque | 100 Nm (73,76 ft-lbs) for FC |
Weight | 0.40 kg (0.88 lbs) for FC |
Special cavity | FC - LG |
Seal kit (Viton) | Code: RG22R2040520100 |
Code: RGLGR2040520100 | |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 380 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 9) / ISO 4406 20/18/15 |
Installation position | No restrictions |
Without surface protection | In case of need of surface protection, please consult factory. |

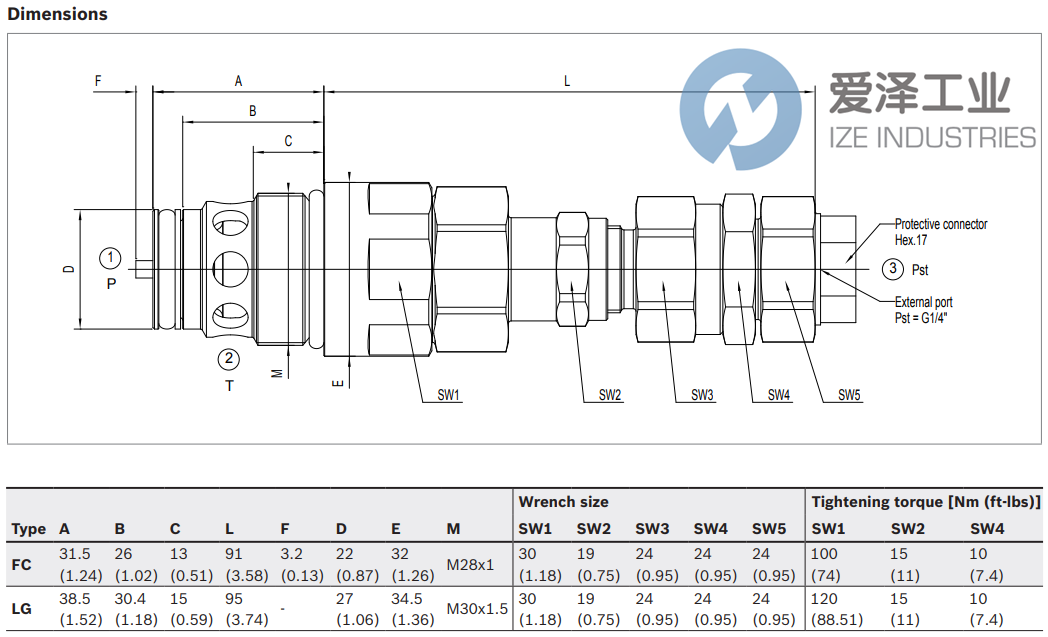

REXROTH閥VBB2-22系列技術尺寸

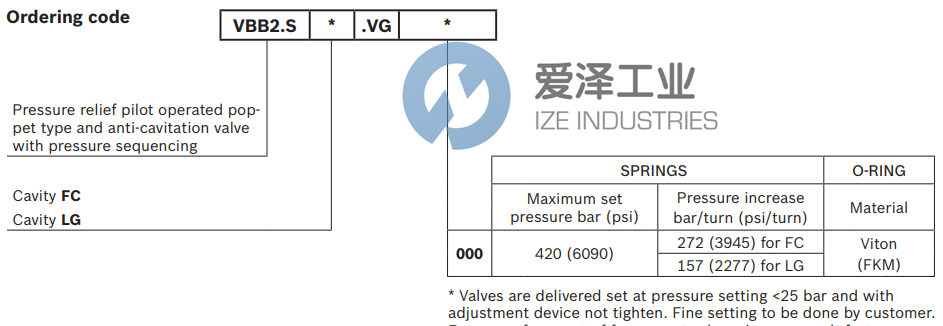

REXROTH閥VBB2-22系列選型
REXROTH閥VBB2-22系列其他常用型號：
REXROTH VBB2.SFC.VG.000 R930076089
REXROTH VBB2.SLG.VG.000 R930076167
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTHF閥VBB2.SLG.VG.000 R930076167的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
REXROTHF閥VBB2.SLG.VG.000 R930076167技術參數及選型
