REXROTH閥VRPX-10A系列技術參數
Technical data | |
Max. operating pressure port 2 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 1 (A) | 280 bar (4000 psi) |
Max. flow | 60 l/min (16 gpm) |
Standard internal pilot orifice diameter | 0.6 mm |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight1) | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-3N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit2) | Code: RG10A3010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) /ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

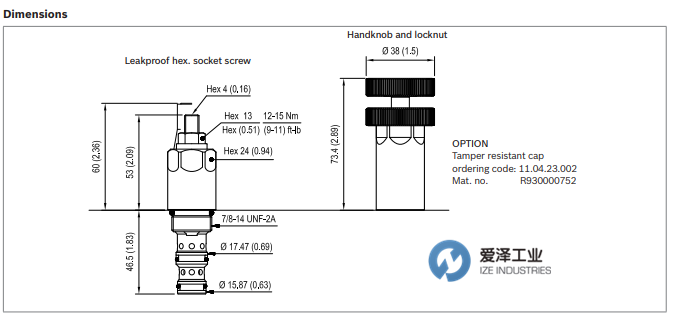

REXROTH閥VRPX-10A系列技術尺寸

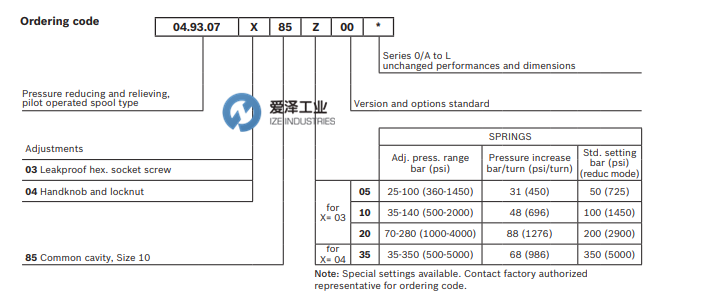

REXROTH閥VRPX-10A系列選型
REXROTH閥VRPX-10A系列其他常用型號：
REXROTH 049307038505000 R930006982
REXROTH 049307038510000 R901104118
REXROTH 049307038520000 R901106468
REXROTH 049307048535000 R930005596
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥049307038510000 R901104118的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
REXROTH閥049307038510000 R901104118技術參數及選型
