REXROTH閥VSAN-08A系列技術參數
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi); for X=03 420 bar (6000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 3 l/min (0.8 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 34 - 41 Nm (25 - 30 ft-lbs) |
Weight | 0.14 kg (0.31 lbs) |
Seal kit | Code: RG08A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) /ISO 4406 20/18/15 |
Installation position | No restrictions |

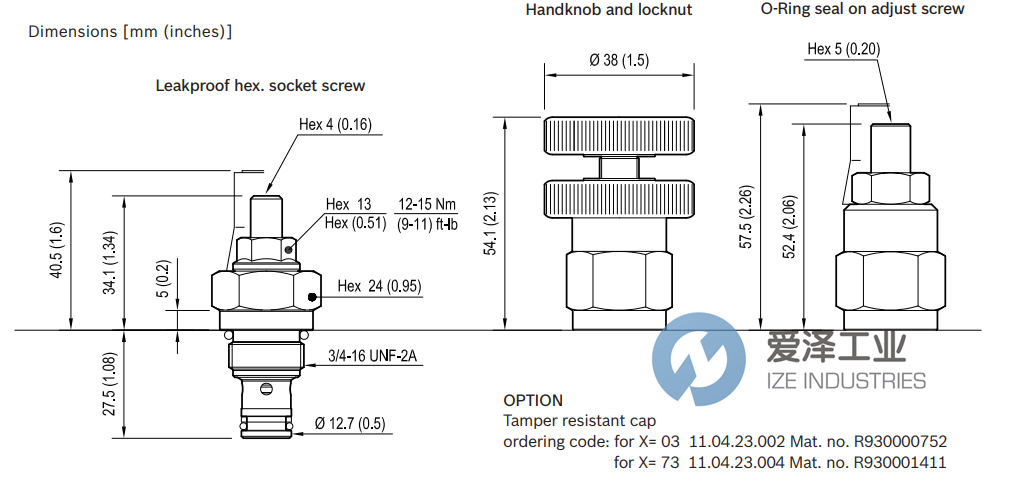

REXROTH閥VSAN-08A系列技術尺寸

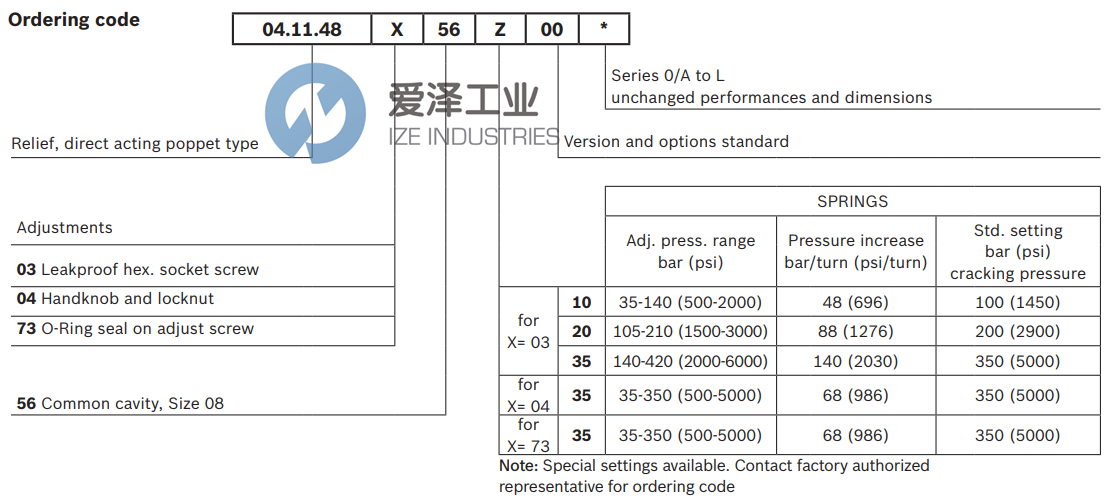

REXROTH閥VSAN-08A系列選型
REXROTH閥VSAN-08A系列其他常用型號：
REXROTH 041148035610000 R901104094
REXROTH 041148035620000 R901104097
REXROTH 041148035635000 R901104099
REXROTH 041148045635000 R901104100
REXROTH 041148735635000 R901161970
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥041148035620000 R901104097的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
REXROTH閥041148035620000 R901104097技術參數及選型
