REXROTH閥VDSJ-10A系列技術參數
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 50 l/min. (13 gpm) |
Max. internal leakage1) | 50 cm3/min. (3 cu.in./min.) |
Pilot displacement volume | 0.28 cm3 (0.02 cu.in) |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-4N |
Seal kit | Code: RG10A4010530100 material no: R901111373 |
Fluids | Mineral-based or synthetics withlubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |

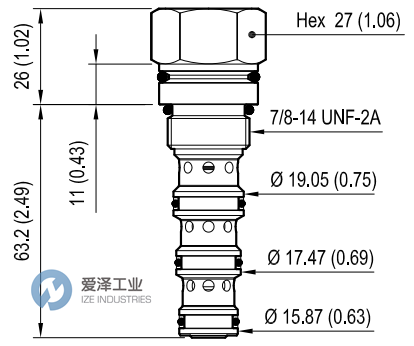

REXROTH閥VDSJ-10A系列技術尺寸

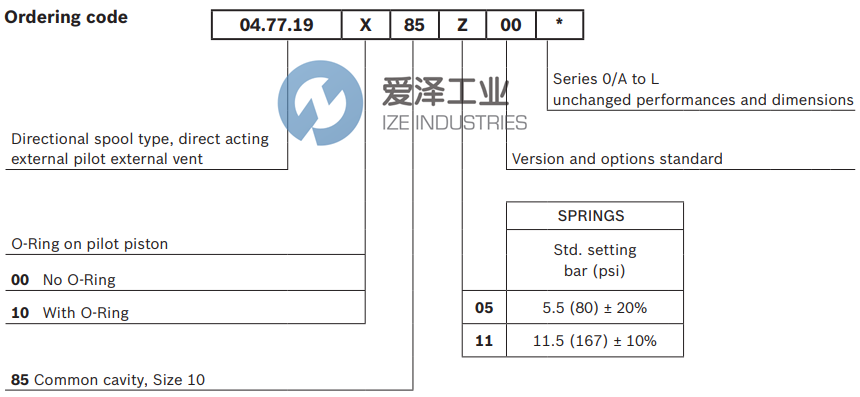

REXROTH閥VDSJ-10A系列選型
REXROTH閥VDSJ-10A系列其他常用型號：
REXROTH 047719008505000 R930000952
REXROTH 047719008511000 R930000953
REXROTH 047719108505000 R930001328
REXROTH 047719108511000 R930001329
