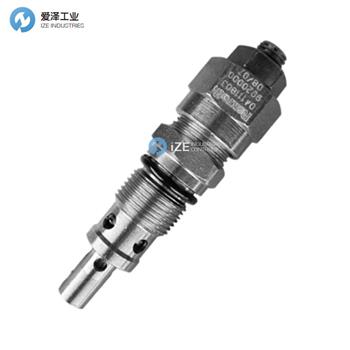

REXROTH閥VS-30規格描述
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 45 - 50 Nm (33 - 37 ft-lbs) |
Weight2) | 0.17 kg (0.38 lbs) |
Special cavity | 008 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit3) | Code: RG0008010000100 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

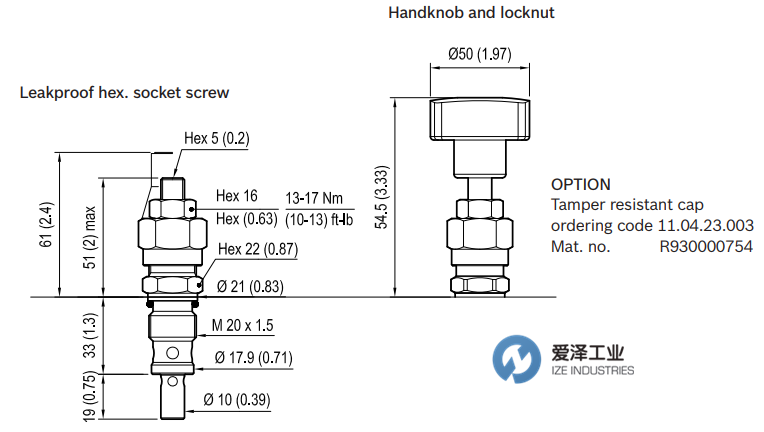

REXROTH閥VS-30系列外觀尺寸圖

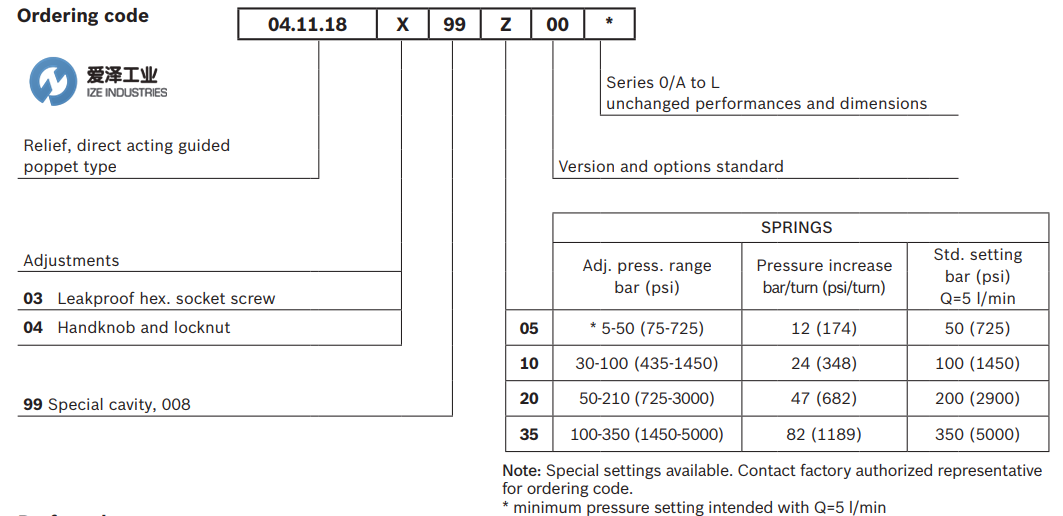

REXROTH閥VS-30系列選型
REXROTH閥VS-30系列其他常用型號：
REXROTH 041118049905000 R930000148
REXROTH 041118049910000 R930000149
REXROTH 041118049920000 R901127942
REXROTH 041118049935000 R930000151
REXROTH 041118039905000 R901113613
REXROTH 041118039910000 R901113614
REXROTH 041118039920000 R901226876
REXROTH 041118039935000 R901113617
