REXROTH閥VED-16-08A-32系列技術參數
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | up to 280 bar (4060 psi) |
Max. flow | up to 20 l/min (5 gpm) |
Max. internal leakage at 230 bar | 40 cm3/min. (2.4 cu.in/min.) |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years |
Cavity | CA-08A-3N |
Seal kit | code: RG08A3010530100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Admitted voltage tolerance | -10% / +15% of nominal voltage at 60°C amb. T |
Power consumption | 20 W |

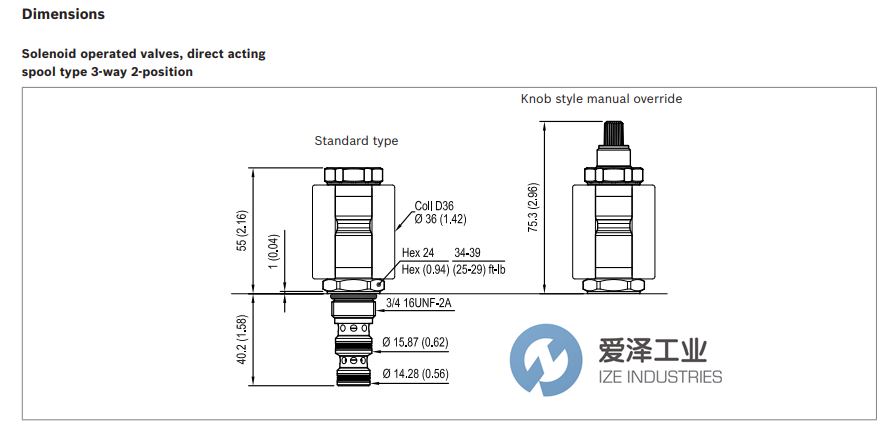

REXROTH閥VED-16-08A-32系列規格尺寸

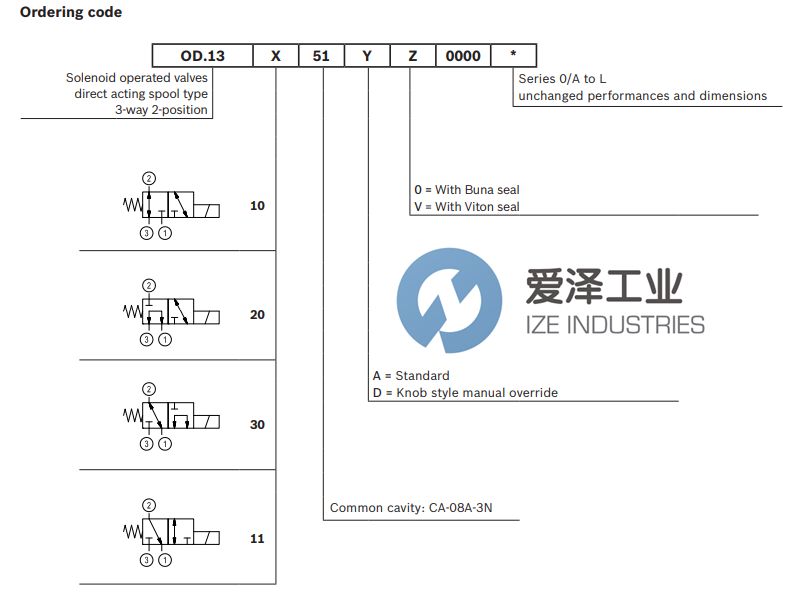

REXROTH閥VED-16-08A-32系列選型
REXROTH閥VED-16-08A-32系列其他常用型號：
REXROTH OD132051A000000 R930058703
REXROTH OD131051A000000 R930058342
REXROTH OD131051D000000 R930058707
REXROTH OD131151A000000 R930058704
REXROTH OD131151D000000 R930058708
REXROTH OD132051D000000 R930058709
REXROTH OD133051A000000 R930058702
REXROTH OD133051D000000 R930058710
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OD132051A000000 R930058703的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
REXROTH閥OD132051A000000 R930058703技術參數及選型
