REXROTH OIL CONTROL閥0532系列規格描述
Technical data | |
Design | Seat valve with damping |
Line connections | for pipeline installation and block installation |
Installation position | Optional |
Ambient temperature | –30...+80 °C |
Pressure medium | Hydraulic oils based on mineral oil acc. to DIN/ISO, |
Viscosity | 10...800 mm2/s permissible range |
Pressure medium temperature | –30 °C...+80 °C with NBR sealings, NBR = Perbunan? |
Filtration | Oil contamination Class 19/16 in accordance with ISO/DIS 4406, |
Direction of flow rate | shown by symbol or marking |
Operating pressure For line installation | P: max. permissible 350 bar, depending on number of load changes and temperature. Counter values on request. |
For block installation | P: In accordance with set pressure. |
MTTFd: | max. 150 years, PRV with set value > 210 bar: B10 value on request |
Cracking pressure (tolerance pnom +5 %) Set at flow 0.1 l/min | |
Leakage oil flow | Max. 1 cm3/min |
Flow | Max. 120 l/min, depending on set pressure and line ?, see chapter “Characteristics” |

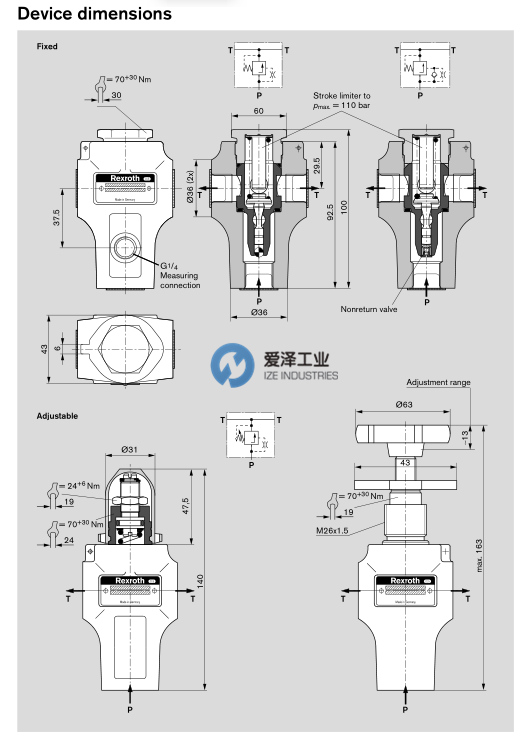

REXROTH OIL CONTROL閥0532系列尺寸圖

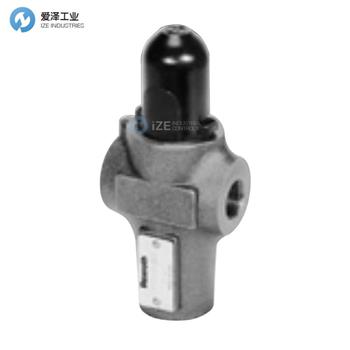

REXROTH OIL CONTROL閥0532選型及介紹
Features
– Type of connection for pipeline installation and block installation
– Adjustment methods such as hand wheel, lead-seal capable, fixed, hand wheel with scale (with and without lock)
Application
In conveying and handling equipment, agricultural engineering,
in municipal-vehicles and in general mechanical engineering.
特征
–管道安裝和塊安裝的連接類型
–調整方法，例如手輪，可鉛封，固定，帶刻度的手輪（帶鎖和不帶鎖）
應用
在輸送和搬運設備，農業工程，
在市政車輛和一般機械工程中。

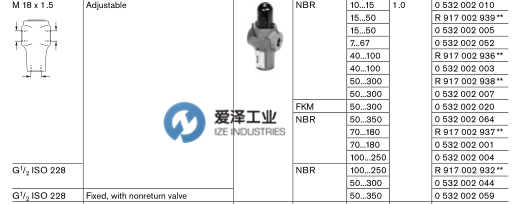

REXROTH OIL CONTROL閥0 532….系列其他常用型號：
REXROTH OIL CONTROL 0532002010
REXROTH OIL CONTROL R917002939**
REXROTH OIL CONTROL 0532002005
REXROTH OIL CONTROL 0532002052
REXROTH OIL CONTROL R917002936**
REXROTH OIL CONTROL 0532002003
REXROTH OIL CONTROL R917002938**
REXROTH OIL CONTROL 0532002007
REXROTH OIL CONTROL 0532002020
REXROTH OIL CONTROL 0532002064
REXROTH OIL CONTROL R917002937**
REXROTH OIL CONTROL 0532002001
REXROTH OIL CONTROL 0532002004
REXROTH OIL CONTROL 0532002044
REXROTH OIL CONTROL 0532002059
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0532002044的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
REXROTH OIL CONTROL閥0532002044技術數據
