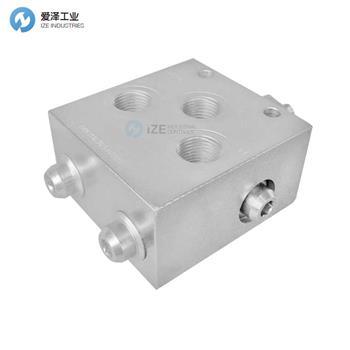

REXROTH OIL CONTROL閥08.81.11-X-Y-Z規格描述：
Technical data | |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min (gpm) | 150 (40) |
Leakage at max.relief setting l/min (gpm) | 0.10 (0.03) |
The pilot operated relief cartridge provides very “flat” curves up to the max flow. | |
For best protection, the valve should be fitted as close to the actuator as possible. | |
General | |
Manifold material | Steel |
Weight | see “Dimensions” |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |

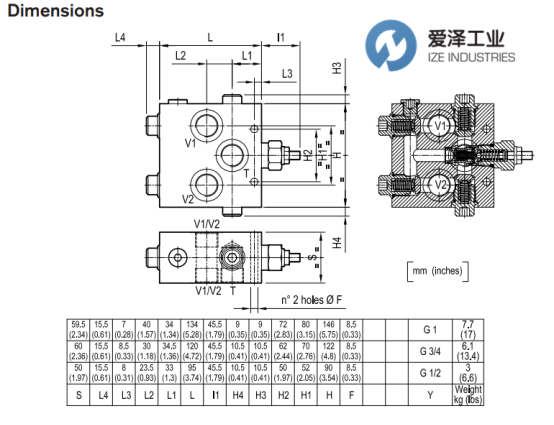

REXROTH OIL CONTROL閥08.81.11-X-Y-Z尺寸：

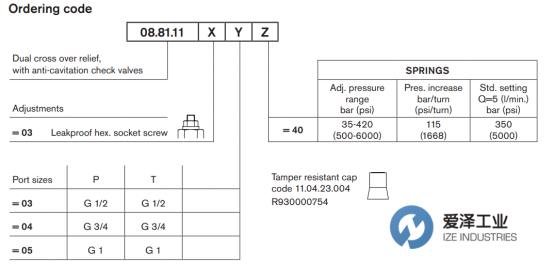

REXROTH OIL CONTROL閥08.81.11-X-Y-Z選型及介紹：
Description
It relieves the inlet pressure from either one of the supply lines and it protects motors or hydraulic actuators from shocks or pressure surges induced by changes in direction or by sudden stops. The relief is of the cross over type, and exhausted oil is transferred through the check valve to the low pressure line (from V1 into V2, or vice-versa) to prevent cavitation. An extra tank port (T), with 2 additional checks, allows to make up for any drain or exhausted flow and ensures that the motor is always full.
描述
它可減輕任一供應管線的入口壓力，并保護電動機或液壓執行器免受方向變化或突然停止而引起的沖擊或壓力波動的影響。 溢流閥為交叉型，排氣通過單向閥傳輸至低壓管路（從V1到V2，反之亦然），以防止氣蝕。 額外的油箱端口（T），帶有2個附加的檢查裝置，可以彌補任何排水或排出的流量，并確保電動機始終充滿油。
REXROTH OIL CONTROL閥A-VAA-CC-150系列其他常用型號：
REXROTH OIL CONTROL 088111030340000 R930004103
REXROTH OIL CONTROL 088111030440000 R930004104
REXROTH OIL CONTROL 08811103054000A R930054488
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
