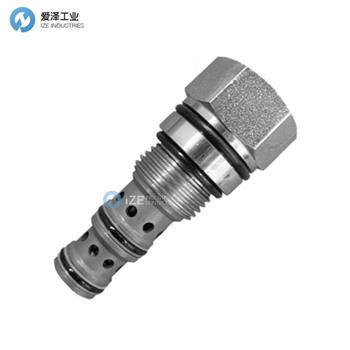

REXROTH OIL CONTROL閥04.77.22-X-85-Z規格描述
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 50 l/min. (13 gpm) |
Max. internal leakage1) | 25 cm3/min. (1.5 cu.in./min.) |
Pilot displacement volume | 0.28 cm3 (0.02 cu.in.) |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-3N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit2) | Code: RG10A3010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1) Measured at 200 bar (2900 psi) |

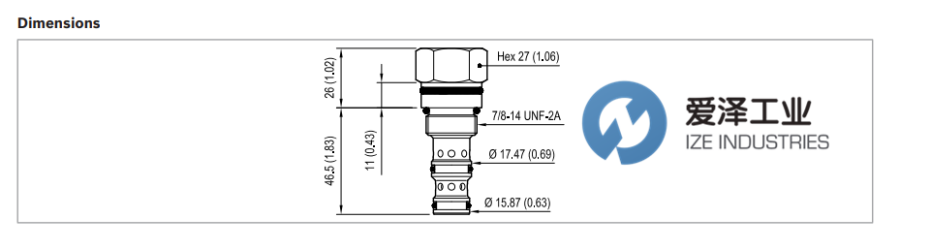

REXROTH OIL CONTROL閥04.77.22-X-85-Z外觀尺寸圖

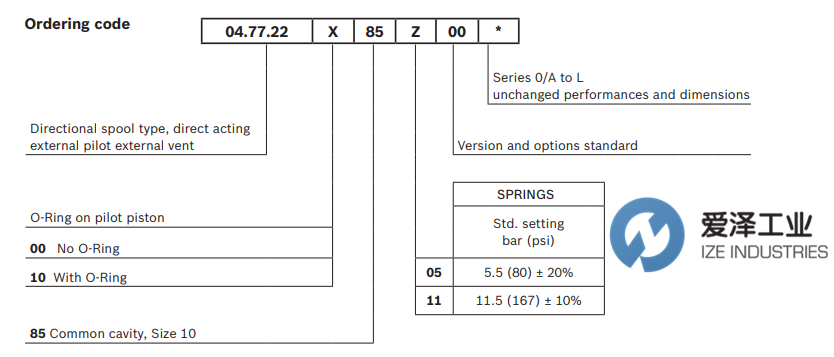

REXROTH OIL CONTROL閥04.77.22-X-85-Z型號解析
Description
Flow is allowed bi-directionally between 2 and 3 until pressure at 1 rises to overcome the spring bias against the spool. When this bias pressure is surpassed, the spool shifts, blocking flow at both 2 and 3. The spring chamber is sealed and vented to atmosphere, allowing consistent shifting with only spring bias pressure independent of conditions at 2 or 3.
描述
允許在2和3之間雙向流動，直到1處的壓力上升以克服彈簧對閥芯的偏壓。當超過此偏壓力時，閥芯會移動，從而阻塞2和3處的流量。彈簧腔被密封并排空到大氣中，僅在彈簧偏壓力不依賴于2或3條件的情況下，即可進行一致的移動。
