General

Weight

0.25 kg (0.55 lbs)

Installation orientation

Unrestricted

Storage ambient temperature range

—40 to 100 °C (-40 to 212 °F)

Operating ambient temperature range

—30 to 90 °C (-22 to 194 °F)

Salt spray test to
DIN EN ISO 9227:2017-07

500h

Hydraulic

Max. operating pressure

350 bar (5000 psi)

Flow range

5 - 150 l/min (1 - 40 gpm)

Fatigue cycle life

1 million cycles at 350 bar

Max. internal leakage:

20 drops/min.

Fluid temperature range

—20 to 80 °C (-4 to 176 °F)

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt)

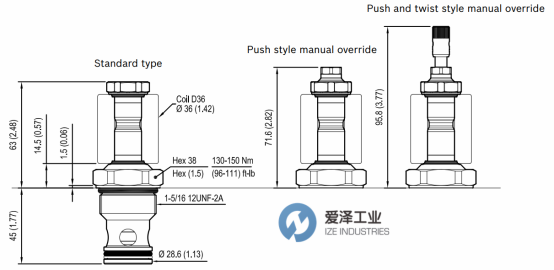

Installation torque

130 - 150 Nm (96 - 111 ft-lbs)

Recommended degree of fluid contamination

Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14

MTTFD

150 years see RE 18350-51

Common cavity

CA-16A-2N see 18325-70

Seal kit for X=06

code RG75E201052010
material no. R934004079

Seal kit for X=32

code RG75E201053010
material no. R934004080

Seal kit coil and standard cap

code RG01Z0010000100
material no. R930058940

Seal kit coil and protective cap only for Y=B

code RG03Z0010000100
material no. R930067870

Seal kit coil and protective cap only for Y=C

code RG04Z0010000100
material no. R930069171

Other technical data

See data sheet 18350-50

Electrical

Type of voltage

DC voltage

Coil type

D36

Supply voltage

See data sheet 18325-90

Voltage tolerance against ambient temperature

See characteristic curve

Power consumption

20 W

Type of protection

See data sheet 18325-90

Note: Coils must be ordered separately
