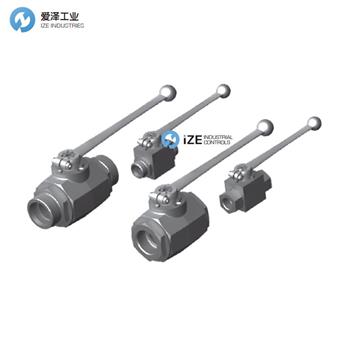

HYDAC球閥KHB系列規格描述
Type of construction: | Block type KHB DN 04 - 25 |
Types of connection: | Light and heavy threaded pipe connection to DIN 2353 |
Mounting position: | Optional |
Ambient temperature: | "-10 °C to +80 °C |
Nominal pressure: | up to PN 500 / 7250 PSI |
Operating fluids: | Mineral oil to DIN 51524 Part 1 and Part 2 (other fluids on request) |
Temperature of operating fluid: | "-10 °C to +80 °C |
Type of construction: | Shut-off device is a ball |
Weight: | See table |
Flow direction: | Optional |
Spare parts: | Seal kits available on request |
Accessories: | All ball valves can be supplied with the following options: |

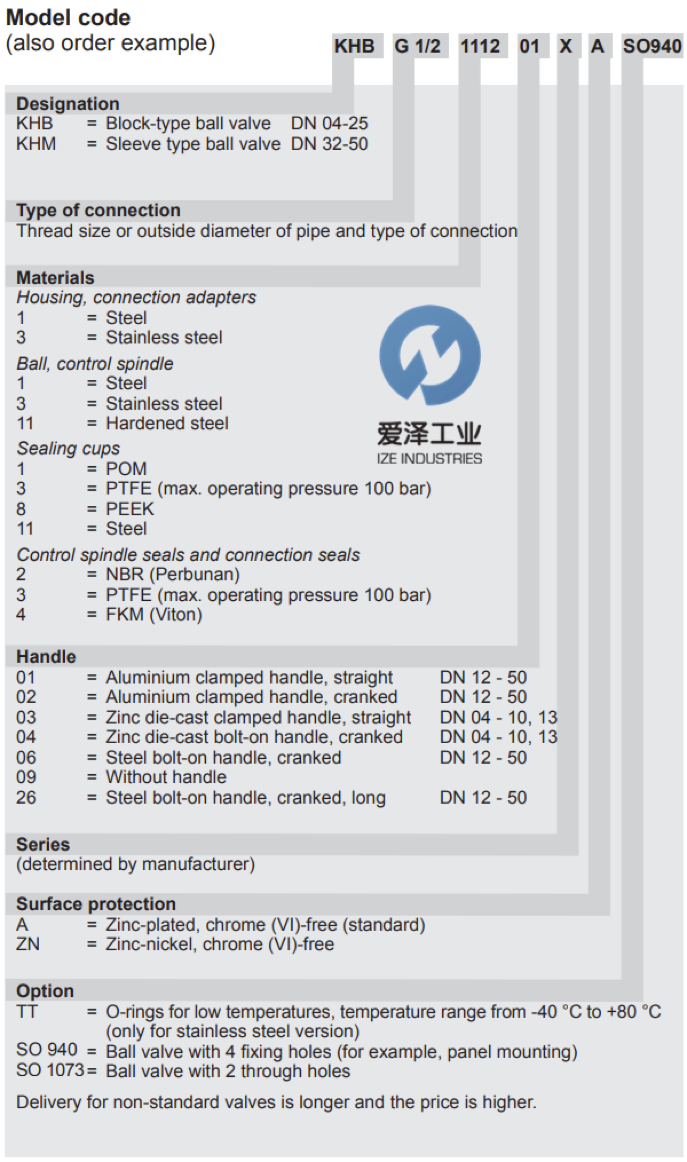

HYDAC球閥KHB系列型號解析
HYDAC球閥KHB系列其他常用型號：
HYDAC KHB-G1/2-1214-01X
HYDAC KHB-G1/2-1114-16X-A-l-1.300
HYDAC KHB-G1/2-1114-16X-A-L
HYDAC KHB-G1/2-1112-04X-A-SW09
HYDAC KHB-G1/2-1133
HYDAC KHB-G1/2-1112-01XKHB-G1/2-1112-01
HYDAC Ball valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC球閥KHB-G1/2-1214-01X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
HYDAC球閥KHB系列KHB-G1/2-1214-01X規格描述
