EATON馬達129-0003-002參數介紹

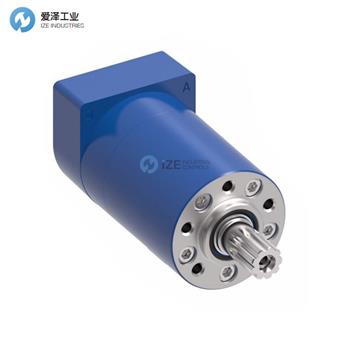

129-0003-002 | Eaton Char-Lynn 129-0003-002 J Series | |
General specifications | Product Name | Eaton Char-Lynn J Series Spool Geroler |
Catalog Number | 129-0003-002 | |
Model Code | M0J12A01A1000A0B | |
Product Length/Depth | 5.8 in | |
Product Height | 2.53 in | |
Product Width | 2.38 in | |
Product Weight | 4.8 lb | |
Warranty | Hydraulics Warranty | |
Product specifications | Torque | 38 Nm |
Special Features (Hardware) | None | |
Intermittent Pressure | 165 bar | |
Seal Options | ||
Geroler Options | ||
Identification | ||
Design code | 2 | |
Port Type | .5625-18 UNF-2B SAE O-Ring Ports End Ports | |
Valve Options | ||
Speed Sensor | No | |
Recommended System Working Temperature | -34°C to 82°C | |
Front Seal Kit if available | 60580-000 | |
Viscosity Recommendation | 70 SUS | |
Mounting Type | 5 Bolt: Dia. 31,47 [1.239] x 5,1 [.20] Pilot 1/4-28 UNF 2B Mounting Holes on 45 [1.77] Dia. Bolt Circle | |
Product material | Cast Iron | |
Flow rate | 21 l/min | |
Maximum Speed | 1043 RPM | |
Paint | Primer Low Gloss Black | |
Special Assembly Instructions | ||
Displacement | 19.8 cm3/rev | |
Two Speed Ratio | ||
Case Flow Options | .375-24 UNF-2B SAE O-Ring Port | |
Output Shaft Type | Straight | |
Pressure/Flow Option | ||
Packaging | Individual Box | |
Shaft Options | ||
Application | Agricultural augers, Harvesters, Seeders, Marine bow thrusters, Food processing | |
Low Pressure Relief | ||
Brake Type | Hydraulic |
EATON馬達其他常用型號：
EATON 129-0003-002
EATON 129-0005-002
EATON 129-0004-002
EATON 129-0001-002
EATON 129-0006-002
EATON 129-0007-002
EATON 129-0002-002
EATON 129-0009-002
EATON 129-0008-002
EATON motor NEW + ORIGINAL+ ONE YEAR WARRANTY
