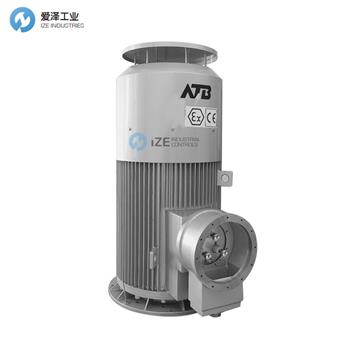

ATB電機CD100L2-4產品參數
Build size: | 200 |
Number of electrical poles: | 4th |
Operating mode | S1-S7, S9, S10 |
P2 power [kW]: | 30 |
Circuit 1: | D. |
Sharpening 2: | Y |
Frequency 1-2 [Hz] | 50 |
Special version: | Low temperature version |
Design: | B5 |
Cable entry: | Execution 1 |
Protection class | IP: 66 |
Type of balancing: | Half balancing |
Ventilation: | Electrically conductive fan |
Temperature class / Expl. Protection: | T4 |
Expl. Protection dust ATEX: | II 2D Extb IIIC T120 ° C Db |
Painting: | Interior painting special |
ATB電機CD100L2-4產品介紹
高壓三相電動機具有防爆外殼，并符合DIN EN 60079-1中關于IIC組和溫度等級T3至T6的要求。
繞線
根據設計，采用圓線無規繞組或傳統的繞線線圈。熱應用達到絕緣等級B。僅在特殊情況下，才稍微超過F級極限。
The high-voltage three-phase motors are explosion-proof with a flameproof enclosure, in accordance with DIN EN 60079-1 for Group IIC and temperature classes T3 to T6.
Winding
According to design, round-wire random-wound windings or conventional form-wound coils are employed. The thermal application meets insulation class B. Only in special cases, the class F limit is slightly exceeded.
ATB電機CD系列其他型號：
ATB CD112M-2
ATB CD112M-2Y
ATB CD132S1-2
ATB CD132S2-2
ATB CD160M1-2
ATB CD160M2-2
ATB CD160L-2
ATB CD180M-2
ATB CD200L1-2
ATB CD200L2-2
ATB CD225M-2
ATB CD250M-2
ATB CD280S-2
ATB CD280M-2
ATB CD100L2-4
ATB motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ATB電機CD100L2-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ATB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
