KROM SCHRODER壓力開關DG..C系列電氣參數
Technical data |
Gas type: natural gas, town gas, LPG (gaseous),flue gas, biologically produced methane (max. 0.1 %-byvol. H2S) and air. |
Max. inlet pressure pmax = withstand pressure = 600 mbar (8.5 psig). |
Max. test pressure for testing the entire system: temporarily < 15 minutes 2 bar (29 psig). |
Maximum medium and ambient temperatures: |
Storage temperature: -20 to +40°C (-4 to +104°F). |
Diaphragm pressure switch, silicone-free. |
Diaphragm: NBR. |
Housing: glass fibre reinforced PBT plastic with low gas release. |
Lower housing section: AlSi 12. |
Enclosure:IP 54 pursuant to DIN EN 60529 with standard socket to DIN EN 175301-803,IP 00 with AMP plug. |
Safety class: 1. |
Weight: 60 g (2.12 oz). |

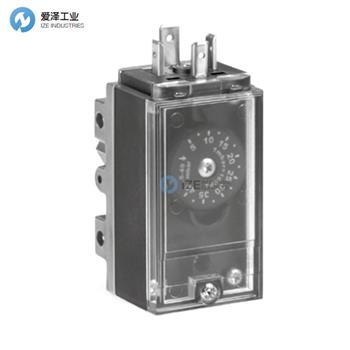

KROM SCHRODER壓力開關DG..VC系列介紹
帶手輪的雙壓力開關最小和最大切換點調整
DG..VC適用于加熱鍋爐，例如用液化石油氣和天然氣的鍋爐。
Double pressure switch with hand wheels for min. and max. switching point adjustment.
The DG..VC is suitable for heating boilers, for example, which are operated with LPG as well as natural gas.

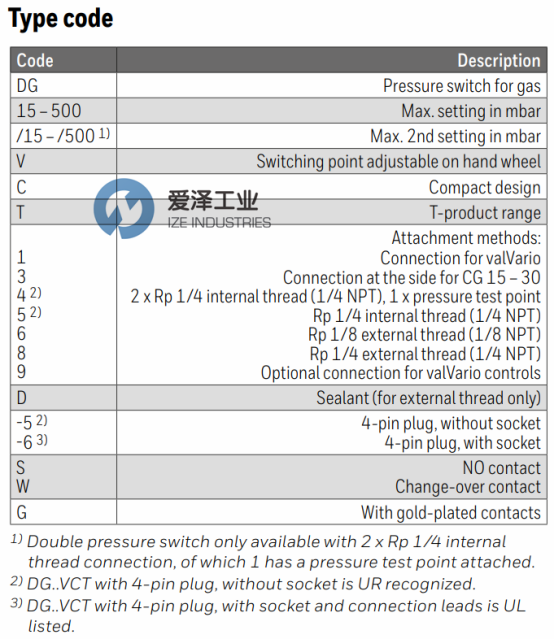

KROM SCHRODER壓力開關DG..VC系列選型
KROM SCHRODER壓力開關DG..VC系列其他常用型號：
KROM SCHRODER DG17VC4-5W
KROM SCHRODER DG30VC4-5W
KROM SCHRODER DG40VC4-5W
KROM SCHRODER DG45VC4-5W
KROM SCHRODER DG60VC4-5W
KROM SCHRODER DG110VC4-5W
KROM SCHRODER DG150VC4-5W
KROM SCHRODER DG300VC4-5W
KROM SCHRODER DG500VC4-5W
KROM SCHRODER pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROM SCHRODER壓力開關DG40VC4-5W的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROM SCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
KROM SCHRODER壓力開關DG..C系列DG40VC4-5W產品參數
