PUR-LED燈LEI-6536859產品參數
Specifications | |
Electrical data | |
Nominal voltage | 24 Vdc |
Rated current | 0.3 A / 0.5m |
Rated capacity | 8 W / 0.5m |
Efficiency | 20 lm / W |
Energy efficiency class | B |
Lighting data | |
Luminous flux | 165 lm / 0.5m |
Light color | RGB |
Color temperature | - |
Color rendering index RA | - |
Beam angle | 120 ° |
dimmable | yes, via PWM (see data sheet) |
Lifetime & ignition time | |
Nominal service life | 30,000 h |
Ignition time | <0.5 s |
Start-up time | immediately |
Temperatures | |
Operating temperatur | 55 ° C measured at the TC point |
Storage temperature | -15 to +40 ° C |
Dimensions | |
Length | approx. 510 mm |
Width | 15 mm |
Height | 7 mm |
LED distance | approx.15mm |
PUR-LED燈LEI-6536859產品介紹
室內和室外使用的24Vdc LED燈條。這36個LED均安裝在鋁板上，以確?？焖偾页浞值胤峙錈崃?。
吧臺提供防潑濺的DC插座和用于防水連接的DC插頭，每根0.5m電纜。
材質：塑料透明IP65

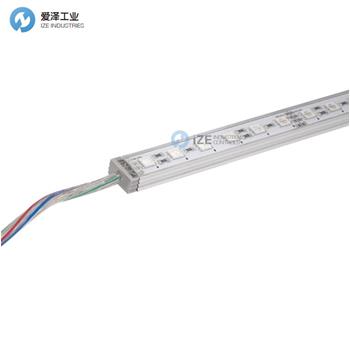

24Vdc LED bar for indoor and outdoor use . The 36 LEDs are mounted on an aluminum board which ensures quick and adequate heat distribution.
The bar offers a splash-proof DC socket and a DC plug for watertight connection, each 0.5m cable.
Material: plastic transparent IP65
