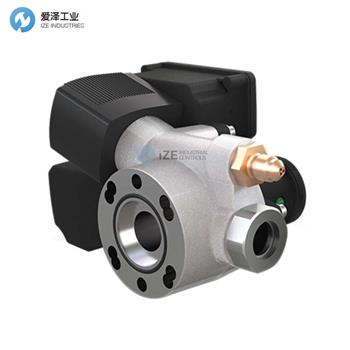

KRIWAN油位調節器INT280-60 52S581P031技術參數
Technical specifications | |
Supply voltage | AC 50/60Hz 230V +10% 25VA |
Permissible ambient temperature TA | -30... +60°C |
Permitted rel. humidity | 10-95% r. h. no condensation |
Medium temperature | -30...+100°C |
Operating pressure | -1...+60bar |
Test pressure | 90bar |
Differential pressure | 1-25bar |
Relay | - Contact AC 240V 2.5A C300 at least AC/DC 24V 20mA |
Interface | Diagnose port (DP) |
Protection class acc. to EN 60529 | IP65 (DP cable or cover has to be installed) |
Supply | - electrical Cable 6xAWG-18, L=1m |
Mounting | Flange (3-/4-hole) |
Housing material | Aluminium PA glass-fibre-reinforced |
Flow rate through valve | 1/min (water 20°C, 1bar differential pressure) |
Permitted oils | Mineral and ester oils without additives |
Permitted refrigerants | Non-corrosive, non-flammable |
Mounting position | Horizontal (rotatable by 180°), +2° |
Weight | Approx. 1400g |
Check base | EN 61000-6-2, EN 61000-6-3 |
KRIWAN油位調節器INT280-60系列介紹
INT280-60 診斷是可靠的 KRIWAN 油位調節器的進一步開發。
油位調節器 INT280-60 Diagnose 監視和控制制冷劑壓縮機中的油位。通過主動從儲油器供油，克服了多壓縮機組中油分布不良的問題。這可以最大限度地降低壓縮機內沒有足夠油的情況下運行的風險。
INT280-60 診斷將操作和錯誤數據保存在非易失性存儲器中。可以讀取和評估這些數據以進行診斷。
The INT280-60 Diagnose is a further development of the reliable KRIWAN oil level regulators.
The oil level regulator INT280-60 Diagnose monitors and controls the oil level in the refrigerant compressors. The problem of poor oil distribution in multi-compressor packs has been overcome by actively supplying oil from the oil reservoir. This minimizes the risk of operating without enough oil in the compressor.
The INT280-60 Diagnose saves operating and error data in a nonvolatile memory. This data can be read and evaluated for diagnosis.
KRIWAN油位調節器INT280-60系列其他常用型號：
KRIWAN INT280-60 31S581P031
KRIWAN INT280-60 52S581P031
KRIWAN INT280-60 52S581P071
KRIWAN OIL LEVEL REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KRIWAN油位調節器INT280-60 52S581P031的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KRIWAN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
