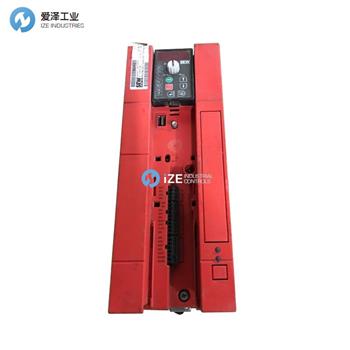

Introduction to SEWinvertersMC07B series
“Device Modularity” and “Smaller Size” are the two most important criteria when selecting a drive for a particular application. SEW is aware of these requirements and, as a result, has designed a new generation of inverters - MOVITRAC MC07B. The power range is from 0.25 to 75 kW.
1-phase and 3-phase power connections for AC 230 V and 3-phase power connections for AC 400 to 500 V
SEW inverters MC07B series technical information
Line connection | Power range | |
200/240 V / 1-phase | 0.25 - 2.2 kW | |
200/240 V / 3-phase | 0.25 - 30 kW | |
400/500 V / 3-phase | 0.25 - 75 kW | |
Application examples | ||
Device variant: | Standard | Technology (application module) |
Continuous motion/processing | ||
Crushers | Yes | Yes |
Conveyor belts | Yes | Yes |
Chain conveyors | Yes | Yes |
Fan | Yes | Yes |
Pumps | Yes | Yes |
Roller conveyors | Yes | Yes |
Extruders | Yes | Yes |
Mixers | Yes | Yes |
Escalators | Yes | Yes |
Centrifuges | Yes | Yes |
Simple positioning (replaces rapid/creep speed switch-over with initiator evaluation) | ||
Dosing pumps | No | Yes |
Rotary tables | limited | Yes |
Trolleys | limited | Yes |
Hoists | limited | Yes |
Cranes | limited | Yes |
Transverse carriages | limited | Yes |
Dynamic positioning | ||
Dosing pumps | No | No |
Handling systems | No | No |
Motion control axes | No | No |
SRS | No | No |
Product features | ||
Device variant: | Standard | Technology (application module) |
Line voltages | ||
1 x AC 200 - 240 V (50/60 Hz) | Yes | Yes |
2 x AC 200 - 240 V (50/60 Hz) | Yes | Yes |
3 x AC 380 - 500 V (50/60 Hz) | Yes | Yes |
Line types | ||
IT | Yes | Yes |
TN with directly grounded star point | Yes | Yes |
TT with directly grounded star point | Yes | Yes |
Control modes | ||
Voltage/frequency control V/f | Yes | Yes |
Voltage-controlled vector control VFC | Yes | Yes |
Current-controlled vector control CFC | No | No |
Functions | ||
Speed synchronization | Yes | Yes |
Simple positioning | No | Yes |
Flying start function | Yes | Yes |
Free programming (IPOSplus) | Yes | Yes |
DC braking | Yes | Yes |
Lifting function | Yes | Yes |
Torque control | No | No |
Energy efficiency | ||
Energy saving function | Yes | Yes |
DC link coupling | limited | limited |
Regenerative power supply | limited | limited |
Functional safety | ||
PROFIsafe | Optional | Optional |
STO | Yes | Yes |
SS1 | limited | limited |
Communication types | ||
CANopen | Yes | Yes |
DeviceNet | Optional | Optional |
EtherCAT | Optional | Optional |
Ethernet/IP | Optional | Optional |
Modbus TCP | Optional | Optional |
PROFIBUS DPV1 | Optional | Optional |
PROFINET IO | Optional | Optional |
Inverters types | ||
Asynchronousinverterss | Yes | Yes |
High-frequencyinverterss | Yes | Yes |
LSPMinverterss | Yes | Yes |
Inverterss in potentially explosive atmospheres | Yes | Yes |
Servoinverterss | No | No |
Synchronousinverterss | No | No |
Encoder types | ||
Absolute encoder | No | No |
Incremental encoder | No | No |
Resolver | No | No |
SEW built-in encoders | No | Yes |
Certifications | ||
CE | Yes | Yes |
cUL | Yes | Yes |
UL | Yes | Yes |
C-Tick | Yes | Yes |
SEW inverters MC07B series
IZE INDUSTRIES special distribution, common spare parts SEW encoder series list:
SEWinverters MC07B0003-2B1-4-00
SEW inverters MC07B0004-2B1-4-00
SEW inverters MC07B0005-2B1-4-00
SEW inverters MC07B0008-2B1-4-00
SEW inverters MC07B0011-2B1-4-00
SEW inverters MC07B0015-2B1-4-00
SEW inverters MC07B0022-2B1-4-00
SEW inverters MC07B0003-5A3-4-00
SEW inverters MC07B0004-5A3-4-00
SEW inverters MC07B0005-5A3-4-00
SEW inverters MC07B0008-5A3-4-00
SEW inverters MC07B0011-5A3-4-00
SEW inverters MC07B0015-5A3-4-00
SEW inverters MC07B0022-5A3-4-00
SEW inverters MC07B0030-5A3-4-00
SEW inverters MC07B0040-5A3-4-00
SEW inverters MC07B0055-5A3-4-00
SEW inverters MC07B0075-5A3-4-00
SEW inverters MC07B0110-5A3-4-00
SEW inverters MC07B0150-5A3-4-00
SEW inverters MC07B0220-5A3-4-00
SEW inverters MC07B0300-5A3-4-00
SEW inverters MC07B0370-5A3-4-00
SEW inverters MC07B0450-5A3-4-00
SEW inverters MC07B0550-5A3-4-00
SEW inverters MC07B0750-5A3-4-00
Who we are
IZE-industries was established in 2010.With its many years of professional experience, providing advanced manufacturing industries technology and equipment. Including advanced electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we also provide our customers with consulting solutions, market knowledge, and value-added services.
What we offer
Engineering and Consulting
Full-service controls engineering and consulting solutions for industrial
manufacturing equipment, including:
Electrical design
PLC programming and repair
Process optimization
Down-time consultation
spare parts from the areas, including:
Hydraulic, Pneumatic, Industrial, Automation technology.
Please contact us for complete stock list or special discount.
If you have any question for SEW inverters MC07B series, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.jguvm.cn.
For more detailed information on the SEW inverters MC07B seriesor to purchase SEW related products, please contact IZE Industries.
