Introduction to SEW inverter MCF40A series

The MOVIDRIVER compact is the term for SEW compact high performance drive inverter s. The MOVIDRIVE R compact unit can be precisely tailored to your requirements. You can use them for AC drives with a power range of 1.5 to 90 kW (2.0 to 120 HP). They combine state-of-the-art inverter technology with proven SEW control processes to meet the most stringent requirements for dynamics and quality control.

The MOVIDRIVE compact range consists of four series:

MOVIDRIVE compact MCF: inverter for asynchronous AC motors, encoderless feedback, VFC control mode

MOVIDRIVE compact MCV: Drive inverter for asynchronous AC motors with encoder feedback, VFC or CFC control mode.

MOVIDRIVE compact MCS: Synchronous servo motor drive inverter  with resolver, CFC control mode.

MOVIDRIVE compact MCH: inverter  for asynchronous AC motors, asynchronous servo motors or synchronous servo motors. Encoder feedback with a Hiperface encoder, sine/cosine encoder or T TL sensor.

SEW inverter technical information

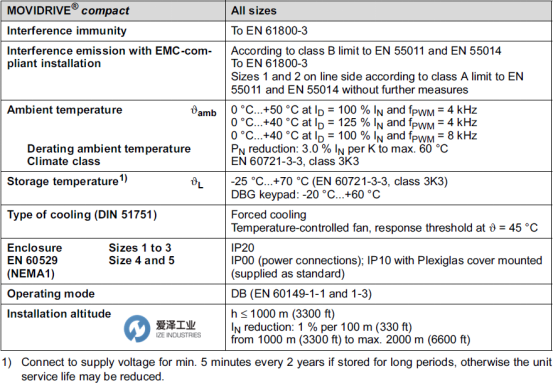

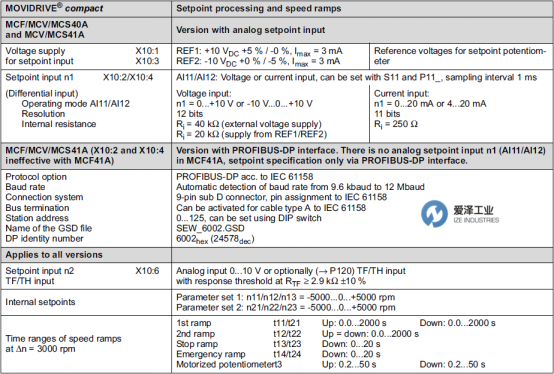

SEW inverter MCF40A series technical information

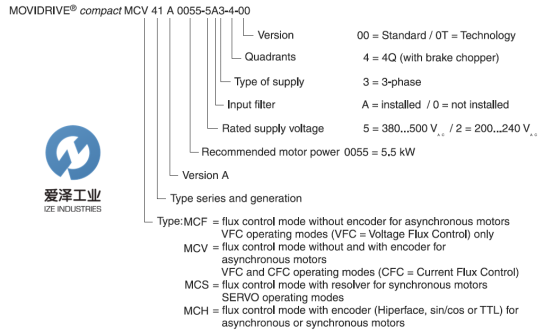

CE mark, UL certification and unit designation

CE mark

? Low voltage command

The MOVIDRIVE @ compact drive inverter  complies with the requirements of the Low Voltage Directive 73/23 / EEC.

? Electromagnetic compatibility (EMC)

The MOVIDRIVE @ compact drive inverter  is designed for installation in machinery and equipment. They comply with the EMC product standard EN 61800-3 'Variable Electric Drives'. If the installation instructions are met, they will meet the corresponding requirements for the CE marking of the entire machine/system in which they are installed in accordance with EMC Directive 89/336 / EEC.

MOVIDRIVE @ compact drive inverter s of sizes 1 and 2 come standard with an input filter. These devices comply with the limits A of EN 55011 and EN 55014 and no further action is required.

The CE mark on the nameplate indicates compliance with the Low Voltage Directive 73/23 / EEC and the EMC Directive 89/336 / EEC. We can issue a statement that meets this effect on request.

SEW inverter MCF40A series features

? Wide voltage range

-400/500 V units, voltage range 3 x 380 500 VAC

-230 V units, voltage range 3 x 200 240 VAC

? High overload capability

-150% short-term operation

-125% IN continues to operate without overload (pump, fan)

? In VFC mode, IN = 100% allows ambient temperature up to = 500 °C

? Integrated brake chopper as standard with 4Q function

? Compact unit mounting position, minimizing switch cabinet space requirements and optimal use of switch cabinet volume

? Integrated input filter as standard size 1 and 2 mounting with Class A limits on the input side without any additional measures

? Six isolated binary inputs and three binary outputs, one of which is a relay output, programmable input/output

? A TF / TH input for motor protection, including PTC thermistors or thermal contact tri-color LEDs for display operation and fault conditions.

? Separate 24 VDC voltage input for powering the inverter  electronics (even if the power system is off, parameter setting, diagnostics and data storage)

? Detachable connection unit, and MOVIDRIVE compact MCH4_A, detachable electronics terminal

? Can disconnect 1 unit power terminal

SEW inverter MCF40A series selection reference

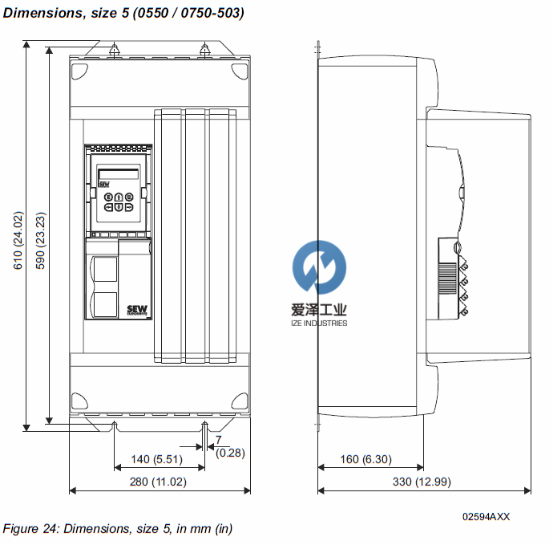

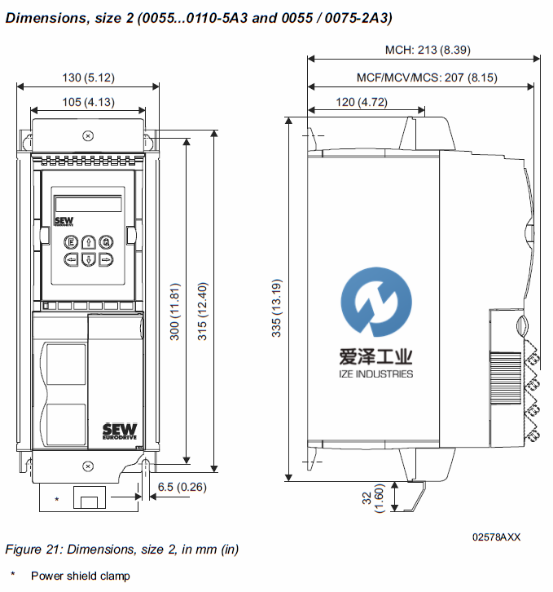

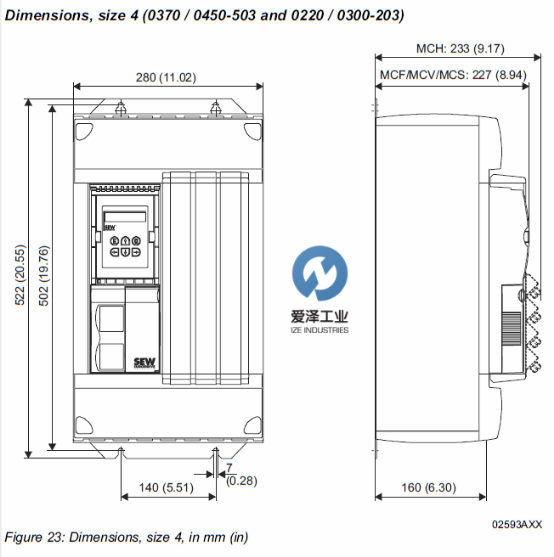

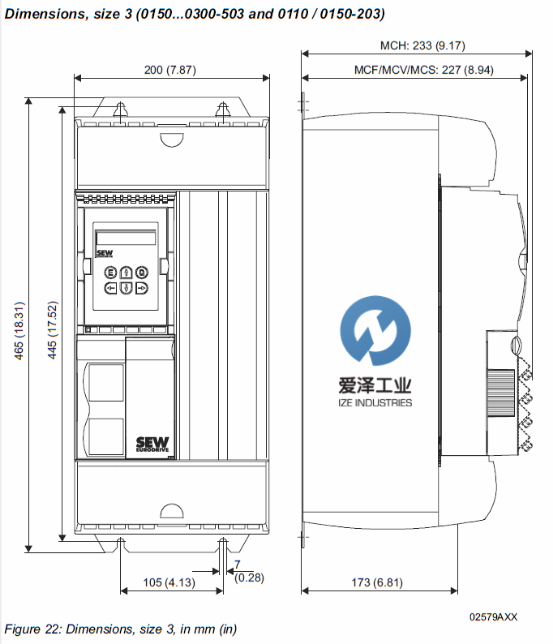

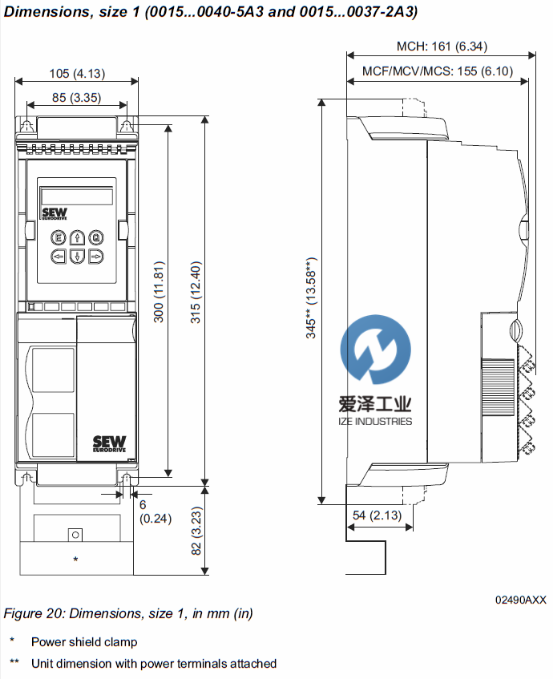

SEW inverter MCF40A series size

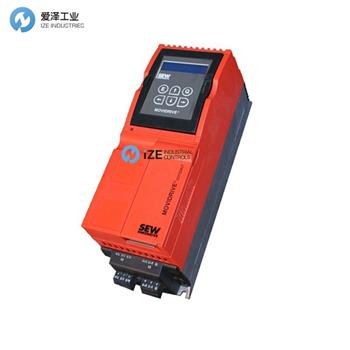

SEW inverter MCF40A series

IZE INDUSTRIES special distribution, common spare parts SEW encoder series list:

SEW inverter MCF41A0075-5A3-4-00

SEW inverter MCF41A0075-5A3-4-00

SEW inverter MCF40A0040-5A3-4-00

SEW inverter MCF41A0075-5A3-4-00

SEW inverter MCF40A0055-5A3-4-00

SEW inverter MCF41A0220-503-4-00

SEW inverter MCF40A0030-5A3-4-00

SEW inverter MCF41A0055-5A3-4-00

SEW inverter MCF41A0110-5A3-4-00

SEW inverter MCF41A0110-5A3-4-00

SEW inverter MCF41A0022-5A3-4-00

SEW inverter MCF40A0110-5A3-A-00

SEW inverter MCF41A0015-5A3-4-00

SEW inverter MCF41A0030-5A3-4-00

SEW inverter MCF41A0075-5A3-4-00

SEW inverter MCF41A0022-5A3-4-00

SEW inverter MCF40A0075-5A3-4-00

SEW inverter MCF41A0110-5A3-4-00

SEW inverter MCF41A0075-5A3-4-00

SEW inverter MCF40A0055-5A3-4-00

SEW inverter MCF40A0075-5A3-4-00

SEW inverter MCF40A0110-5A3-A-00

SEW inverter MCF41A0040-5A3-4-00

SEW inverter MCF41A0030-5A3-4-00

SEW inverter MCF41A0220-5A3-4-00

SEW inverter MCF41A0040-5A3-4-00

SEW inverter MCF40A0015-5A3-4-00

SEW inverter MCF41A0015-5A3-4-00

SEW inverter MCF41A0110-5A3-4-00

SEW inverter MCF40A0110-5A3-A-00

SEW inverter MCF40A0150-503-4-00
