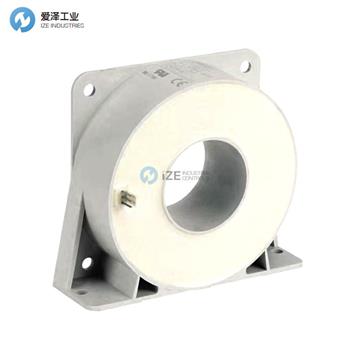

ABB電流傳感器ES1000C規格描述
Technical data | |||
Molex HE14 connector | ES1000C | ||
Nominal pimary current | A c.m.s. | 1000 | |
Measuring range | @ +15V (45%5) | A peak | ±1500 |
Measuring range | @ +24V (.5%) | A peak | ±1500 |
Not meas Jrable overload | 10ms/hour | A peak | 10000 |
Max. measuring resistance | @ bmax & +15V (+5%) | Ω | 4 |
Max. measuring resistance | @ bmax & +24V (:5%) | Ω | 33 |
Min. measuring resistance | @ Lw& +15V (x59) | Ω | 0 |
Min. measuring resistance | @ tw & +24V (596) | Ω | 0 |
Tum number | 5000 | ||
Seoondary curent at Ipn | mA | 200 | |
Acouracyat Ipn | @ +25°C | % | ≤±0.5 |
Aoouracy at Ipn | -5... +70°C | % | ≤±1 |
Accuracyat Ipn | -20... +70°C | % | ≤±1 |
Ofiset curent | @ +25°C | mA | ≤±0.25 |
Linearity | % | ≤0.1 | |
Thermal dhift oeficient | -5... +70°C | μA/°C | ≤5 |
Thermal dift officient | -20... +70°C | μA/°C | ≤20 |
Delay timne | μs | ≤1 | |
di/dt correctly fllowed | A/μs | ≤100 | |
Bandwidth | -1dB | kHz | ≤100 |
Max. no-load consumption current | @ +24V (35%) | mA | ≤12 |
Seoondary resistance | @ +70°C | Ω | ≤40 |
Dielectric strength Primar/Secondary | 50Hz,1min | kV | 3 |
Supply oltage | ±5% | V dc | ±12 … ±24 |
Voltage drop | V | ≤1 | |
Mass | kg | 0.460 | |
Operating temperature | ℃ | -20 …+70 | |
Storage temperature | ℃ | -25 … +85 |
ABB電流傳感器其他常用型號：
ABB ES1000C
ABB ES1000S
ABB ES1000F
ABB current sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB電流傳感器ES1000C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
