HONEYWELL壓力傳感器MLH系列技術參數
Characteristic | Parameter |
Material in contact with media: | |
port | stainless steel 304L |
diaphragm | Haynes 214 alloy |
Housing material | black plastic – Amodel AS-4133 HS – PPA |
Weight | 57.0 g [2.0 oz] (typical for Metri-Pack 150 and 1/8 NPT pressure port types) |
Shock | 100 g peak [11 ms] |
Vibration | MIL-STD-810C, Figure 514.2-5, Curve AK, Table 514.2-V, |
Compensated and operating temperature range: | |
0.5 Vdc to 4.5 Vdc ratiometric output | -40°C to 125°C [-40°F to 257°F] |
all regulated and 4 mA to 20 mA outputs | -40°C to 125°C [-40°F to 257°F] (See Figures 2 & 3 for operating area details.) |
Storage temperature range | -40°C to 125°C [-40°F to 257°F]SS |
Approvals | RoHS, CE, UKCA, UL Component Recognition for USA and Canada: File No. E258956 |
HONEYWELL壓力傳感器MLH系列介紹
MLH 系列重載壓力傳感器將專用集成電路 (ASIC) 技術與介質隔離的金屬隔膜設計相結合。 這種數字補償傳感器提供價值和性能，使其成為適合要求苛刻的應用的壓力傳感解決方案。 提供行業標準的電氣連接器和壓力端口，以提高可靠性和用戶靈活性。
The MLH Series Heavy Duty Pressure Transducers combine Application Specific Integrated Circuit (ASIC) technology with a media-isolated, metal diaphragm design. This digitally compensated transducer offers value and performance, making it a suitable pressure sensing solution for demanding applications. Industry standard electrical connectors and pressure ports are offered for enhanced reliability and user flexibility.

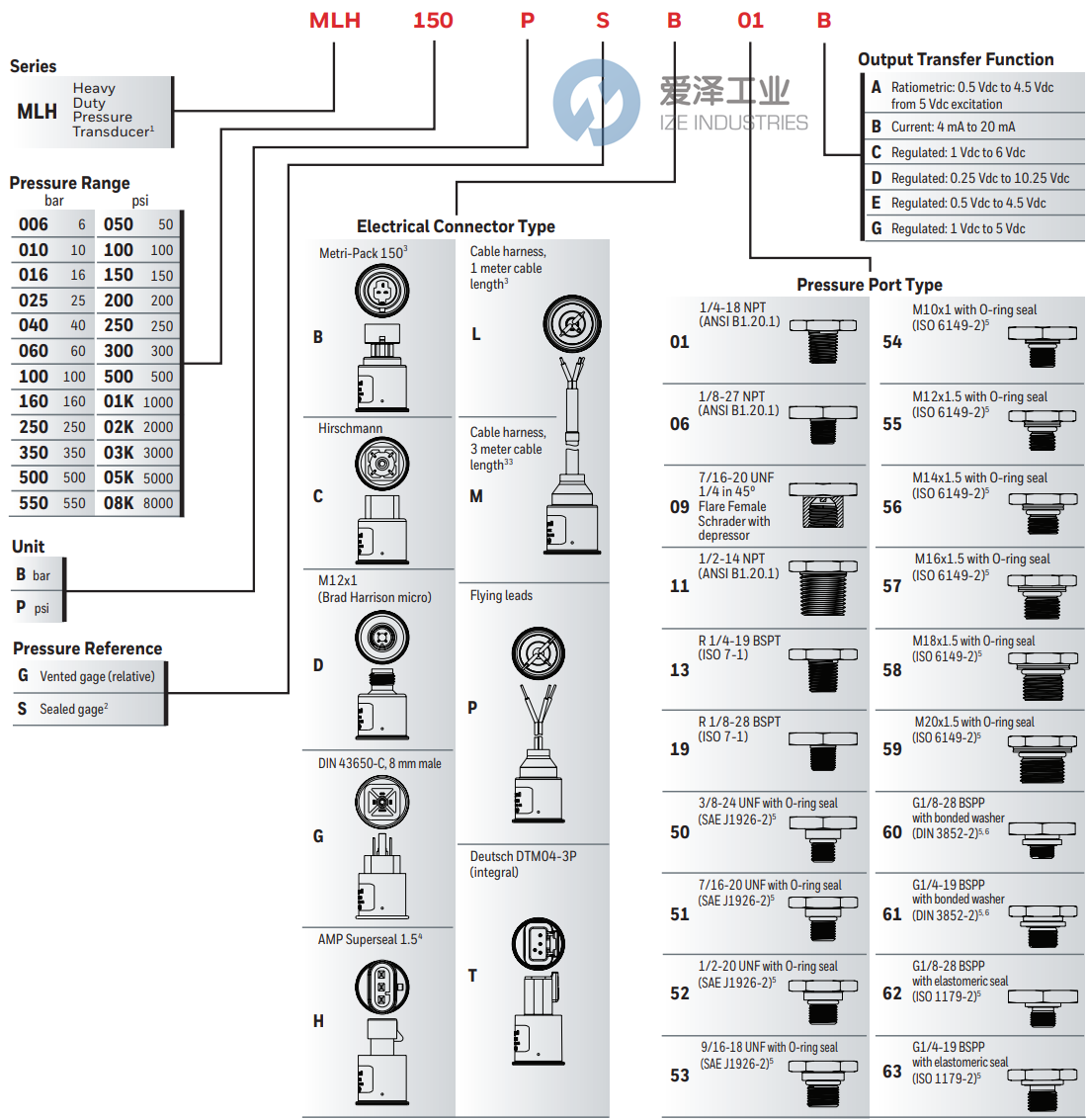

HONEYWELL壓力傳感器MLH系列選型
HONEYWELL壓力傳感器MLH系列其他常用型號：
HONEYWELL MLH100BST01A
HONEYWELL MLH03KPSB01A
HONEYWELL MLH03KPSB01D
HONEYWELL MLH03KPSB01B
HONEYWELL MLH03KPSB06A
HONEYWELL MLH250PGL01B
HONEYWELL MLH500PSG06A
HONEYWELL MLH500PSB09E
HONEYWELL PRESSURE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL壓力傳感器MLH03KPSB06A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
HONEYWELL壓力傳感器MLH系列MLH03KPSB06A技術參數及選型
