SAUTER恒溫器TUC系列規格
Technical data | |
Power supply | |
Max. load | |
Terminal 1-2 | 230 V~, 10 (2.5) A (on the normallyclosed contact) |
Terminal 1-4 | 230 V~, 2 (0.4) A |
Min. load | |
Terminals 1-2, 1-4 | 24V =/~, 100 mA |
Parameters | |
Adjustment point | For ta 22 °C |
Effect of temperature at instrument head | Approx. –0.1...–0.2 K/K |
Time constant with thermowell (LW 7) | < 45 s (water) |
Time constant without thermowell | < 120 s (air) |
Ambient conditions | |
Ambient temperature | 0...70 °C |
Storage and transport temperature | –25...80 °C |
Max. Pipe temperature during fitting | 120 °C |
Construction | |
Connection terminals | Plug-in connectors |
Cable cross-section | 0.75...2.5 mm2 |
Sensor cartridge | ? 6.5 mm |
Housing | Two sections, lower section black, upper section yellow, including inspection window |
Housing material | PA, ABS, PMMA |
Weight | 0.2 kg |
Standards and directives | |
Type of protection | IP54 (EN 60529) |
Protection class | I (EN 60730) |
SAUTER恒溫器TUC系列產品介紹

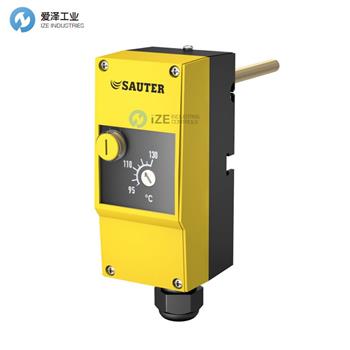

TUC: Universal thermostat
How energy efficiency is improved
Control, monitoring and limiting according to needs and with no auxiliary energy.
Features
? Regulates and monitors the temperature of liquids in baths, containers, pipes and ducts
? Variants as temperature monitors (TW), safety temperature monitors (STW), temperature limiters (TB) or safety temperature limiters (STB)
? Thermostat with remote sensor
? Clamp-on thermostat
? Capillary tube thermostat with or without thermowell
? Double thermostat, e.g. as TW and STB
? Certified as per EN 14597 (TUC207F003 and TUC407F001, TUC407F002)
? As per PED 2014/68/EU classified as cat. IV (TUC207F003, TUC407F001 and TUC407F002)
? The shift in the change-over point is minimised due to the temperature compensation.
? Thermowell 100 mm supplied (max. 12 bar)
TUC：通用恒溫器
如何提高能源效率
根據需要進行控制、監視和限制，無需輔助能源。
特征
? 調節和監控浴槽、容器、管道和管道中液體的溫度
? 溫度監控器 (TW)、安全溫度監控器 (STW)、溫度限制器 (TB) 或安全溫度限制器 (STB) 等型號
? 帶遠程傳感器的恒溫器
? 夾式恒溫器
? 帶或不帶熱電偶套管的毛細管恒溫器
? 雙恒溫器，例如 作為 TW 和 STB
? 通過 EN 14597 認證（TUC207F003 和 TUC407F001、TUC407F002）
? 根據 PED 2014/68/EU，分類為類別。 四（TUC207F003、TUC407F001 和 TUC407F002）
? 由于溫度補償，轉換點的偏移被最小化。
? 提供 100 mm 熱電偶套管（最大 12 bar）
SAUTER恒溫器其他型號：
SAUTER TUC101F003
SAUTER TUC102F001
SAUTER TUC105F001
SAUTER TUC106F001
SAUTER TUC107F001
SAUTER TUC108F001
SAUTER TUC207F003
SAUTER TUC303F001
SAUTER TUC307F001
SAUTER TUC407F001
SAUTER TUC407F002
