CITI氧傳感器3SF系列規格
Technical Specifications | |
MEASUREMENT | |
Operating Principle | 3- electrode electrochemical |
Nominal Range | 0-2000 ppm SO, |
Maximum Overload | 5000 ppm SO2 |
Filter | To remove H,S & HCI |
Sensitivity* | 0.10士0.02 μA/ppm |
Response Time (T.)* | <35 Seconds |
Baseline Offset (clean air)* | +2 ppm equivalent |
Zero Shift (+20°C to +40°C) | <5 ppm equivalent |
Resolution | 1 ppm (electronics dependant) |
Repeatability | 1% of signal |
Output Linearity | Linear |
ELECTRICAL | |
Recommended Load Resistor | 10 Ω |
Bias Voltage | Not Required |
ENVIRONMENTAL | |
Operating Temperature Range | -20°C to +50°C |
Recommended Storage Temp | 0°C to 20°C |
Operating Pressure Range | Atmospheric ± 10% |
Pressure Coefficient | 0.004 % signal/mBar |
Operating Humidity Range | 15 - 90% RH non-condensing |

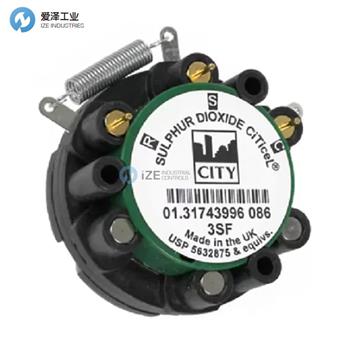

CITI氧傳感器3SF系列介紹
The 3 Series range is City Technology's original gas sensor range. A wide variety of sensors are available in this format and are can be supplied with 4 mA to 20 mA and mV transmitter boards. The 7 Series is the natural replacement for the range.
3SF系列是 City Technology 的原創氣體傳感器系列。多種傳感器均采用這種格式，并可配有4 mA 至 20 mA 和 mV發射器板。
CITI氧傳感器其他常用型號：
CITI 3SFF3S
CITI sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CITI氧傳感器3SFF3S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CITI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
CITI氧傳感器3SF系列3SFF3S產品參數
