ABB氣象傳感器2CDG120046R0011技術參數
Technical data | |
Supply | Voltage: 24 V DC ± 2 V |
Connections | Electrical supply: 1 (0 V potential) |
Connection terminals | RS 485: Bus connection terminal, 2x (yellow/white) 0.8mm ?, single core |
Cable length | Between the Weather Unit and Weather Sensor: 100 m |
Cable length / cable cross-section | P-YCYM or J-Y(ST)Y: 2 x 2 x 0.8 |
Temperature range | Power: -25 °C…+60 °C |
Ambient conditions | Atmospheric pressure: Atmosphere up to 2,000 m |
Mounting | Wall fastening |
Installation position | Horizontal |
Dimensions | L x W x H: 227 x 121 x 108 mm |
Housing/color | Plastic, transparent |
Protection type | IP 44 To DIN EN 60 529 |
Protection class | III To DIN EN 61 140 |
Isolation category | Overvoltage category: III to EN 60 664-1 |
Fire classification | V-2 |
CE mark | In accordance with the EMC guideline and low voltage guideline |

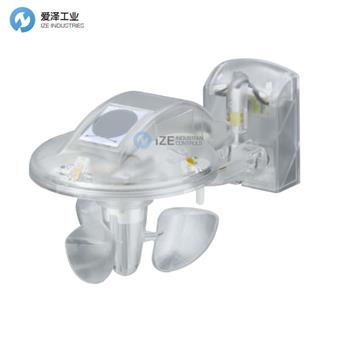

ABB氣象傳感器2CDG120046R0011產品介紹
氣象傳感器 WES/A 3.1 主要在住宅區使用 GPS 信號檢測風速、降雨、三個方向的亮度、暮光、溫度以及日期和時間。
WES/A 3.1 與 ABB 的氣象單元相匹配。
不需要額外的加熱變壓器。
The Weather Sensor WES/A 3.1 detects – primarily in the residential sector – wind speed, rain, brightness in three directions, twilight, temperature and the date and time using the GPS signal.
The WES/A 3.1 is matched to the Weather Unit from ABB.
An additional heating transformer is not required.
ABB氣象傳感器其他常用型號：
ABB 2CDG120046R0011
ABB 2CDG120003R0011
ABB 2CDG120033R0011
ABB 2CDG120091R0011
ABB 2CDG110191R0011
ABB 2CDG110032R0011
ABB 2CDG110184R0011
ABB 2CDG110034R0011
ABB WEATHER SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
