ELECTRO-SENSORS軸速開關SCP2000技術參數
Specifications | |
Detection (selectable) | Under-speed, Over-speed, Zero Speed |
Operating | |
Input Power Options | 115 VAC (60 Hz), 230 VAC, 12 VDC, 24 VDC |
Maximum Frequency | 266.66 Hz |
Gap Distance | 1/4" ± 1/8" |
Operating Temperature | -40° F to +140° F |
Setpoint Data | |
Number of Setpoints | 2 |
Setpoint Range (RPM) | 10-999 |
Contact Arrangement | 2 SPDT Form C |
Setpoint Accuracy | ±0.5% |
Setpoint Adjustment | Rotary Switches (tens and ones digit) |
Hysteresis | 0.06 |
Relay Contact Rating | Isolated, 5 Amp, 250 VAC, 30 VDC Resistive |
Start Delay Option | Yes |
Housing | |
Enclosure Mount | 1-Inch NPT Conduit Opening |
Material | Cast Aluminum |
Enclosure Rating | NEMA 4X, Meets NEMA 1, 3, 12, 13, and NEMA 7, 9 |

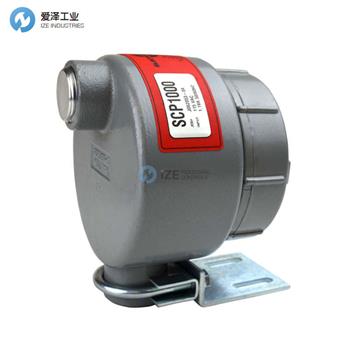

ELECTRO-SENSORS軸速開關SCP系列介紹
SCP1000 和 SCP2000 可預設速度開關是獨立的軸旋轉監控系統，提供一兩個可單獨調節的繼電器設定點。 它們非常適合在危險和潮濕的場所使用，在這些場所中，監控速度以進行報警或機械關閉對于安全操作至關重要，例如斗式提升機、風扇/鼓風機、螺旋輸送機、旋轉氣閘或幾乎任何旋轉軸的超速和/或欠速保護。 SCP 系列開關具有通過旋轉刻度盤進行視覺設定點調整的功能，方便且準確，并且所有校準都可以在機器靜止時完成。
特征
? 內部傳感器
? 超速或低速配置，1-990 rpm
? 1 個 DPDT 繼電器輸出 (SCP1000)、2 個 SPDT 繼電器輸出 (SCP2000)
? 具有數字精度的視覺設定點調整
? 內置啟動延遲
? 撥入式校準不需要電源
? 115、230 VAC (50-60 Hz) 和 12、24 VDC 電源選項
? 與電傳感器磁脈沖發生器圓盤/包裹一起使用
? 可選的EZ-SCP 安裝支架和安裝磁鐵
? 鑄鋁防爆（XP）外殼
? UL 認證 Class I, Div I (C, D) Class II, Div I (E, F, G)
SCP1000 and SCP2000 presettable speed switches are self-contained shaft rotation monitoring systems providing one or two individually adjustable relay setpoints. They are ideal for use in hazardous and wet locations where monitoring speed for alarm or machinery shutdown is critical for safe operation, such as for over-speed and/or under-speed protection on bucket elevators, fans/blowers, screw conveyors, rotary airlocks or virtually any rotating shaft. SCP series switches feature visual setpoint adjustment via rotary dials for ease and accuracy, and all calibration can be done with the machinery at rest.
Features
? Internal sensor
? Over-speed or under-speed configuration, 1-990 rpm
? 1 DPDT relay output (SCP1000), 2 SPDT relay outputs (SCP2000)
? Visual setpoint adjustment with digital accuracy
? Built-in start delay
? Dial-in calibration does not require power
? 115, 230 VAC (50-60 Hz) and 12, 24 VDC power options
? Works with Electro-Sensors magnetic pulser discs / wraps
? Optional EZ-SCP mounting bracket and Mounting Magnet
? Cast aluminum explosion proof (XP) housing
? UL Listed Class I, Div I (C, D) Class II, Div I (E, F, G)

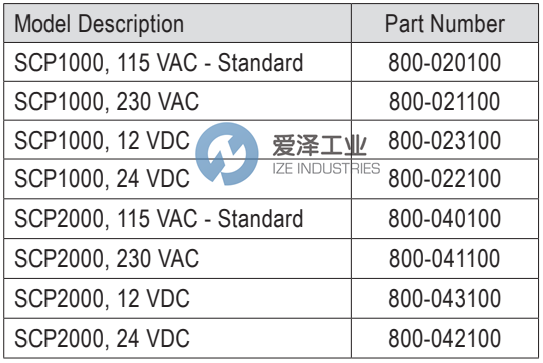

ELECTRO-SENSORS軸速開關SCP系列選型
ELECTRO-SENSORS軸速開關SCP系列其他常用型號：
ELECTRO-SENSORS SCP1000 115 VAC - Standard 800-020100
ELECTRO-SENSORS SCP1000 230 VAC 800-021100
ELECTRO-SENSORS SCP1000 12 VDC 800-023100
ELECTRO-SENSORS SCP1000 24 VDC 800-022100
ELECTRO-SENSORS SCP2000 115 VAC - Standard 800-040100
ELECTRO-SENSORS SCP2000 230 VAC 800-041100
ELECTRO-SENSORS SCP2000 12 VDC 800-043100
ELECTRO-SENSORS SCP2000 24 VDC 800-042100
ELECTRO-SENSORS SHAFT SPEED SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELECTRO-SENSORS軸速開關SCP2000 230V 800-041100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELECTRO-SENSORS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
ELECTRO-SENSORS軸速開關SCP系列SCP2000 230V 800-041100技術參數及選型
