FLINTEC稱重傳感器SLB系列技術參數
specifications | ||
Moximum capacity (Ema) | lb | 200 / 500 / 1,000 / 2,500 / 5,000 |
Metric equivalents (1 Ib=0 .45359 kg) | kg | 91 / 227 / 454 / 1,134 / 2,268 |
Accuracy class according to OIML R60 | C3 | |
Maximum number of verificotion intervals (nmax) | 3,000 | |
Minimum lood cell verification interval (Vmin) | Emax /11,500 | |
Temperoture effect on minimum dead load output (TCo) | %*RO/10°C | ±0.0122 |
Temperoture effect on sensitivity (TCro) | %*RO/10°C | ±0.0100 |
Combined error | %*RO | ±0.0200 |
Non-linearity | %*RO | ±0.0166 |
Hysteresis | %*RO | ±0.0166 |
Creep error (30 minutes)/ DR | %*RO | ±0.0166 |
Roted Output (RO) | mV/V | 2±0.1% |
Calibrotion in mV/V/a (A... clossified) | % | ±0.05 (±0.005) |
Zero bolonce | %*RO | ±5 |
Excitation voltage | V | ...115 |
Input resistance (Rtc) | Ω | 1,100±50. |
Output resistonce (Rout) | Ω | 1,000 +2 |
Insulation resistonce (100 V DC) | MΩ | ≥5,000 |
Safe load limit (Elim) | %*Emax | 200 |
Ultimate load | %*Emax | 300 |
Safe side load | %*Emax | 100 |
Compensated temperature range | °C | 10...+.40 |
Operoting temperature range | °C | -20...+65 (ATEX -20...+60) |
Load cell material | stainless steel 17-4 PH (1.4548) | |
Sealing | potted | |
Protection according EN 60 529 | IP67 | |
Packet weight | kg | 1.1 (200-2,5001b). 1.2 (5,000lb) |
FLINTEC稱重傳感器SLB系列技術
product description

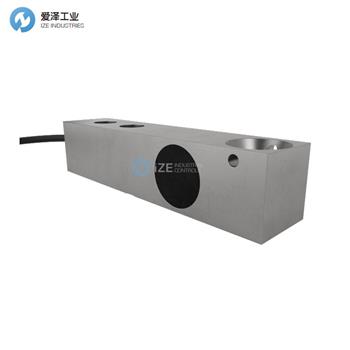

The SLB is a high accuracy, low profile bending beam available in a wide range of capacities. Full stainless-steel construction with potted environmental sealing provides an economical solution for a broad range of weighing applications.
Available with a range of load introduction systems, the blind hole variant combined with Flintec self-aligning load feet ensure optimum weighing accuracy.
產品描述
SLB 是一種高精度、薄型彎曲梁，具有多種容量。 全不銹鋼結構和盆栽環境密封為各種稱重應用提供了經濟的解決方案。
盲孔變體配有一系列負載引入系統，與 Flintec 自對準負載腳相結合，可確保最佳稱重精度。
FLINTEC稱重傳感器其他常用型號：
FLINTEC SLB-5KLB-BH-C3
FLINTEC Beam Load Cell NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLINTEC稱重傳感器SLB-5KLB-BH-C3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLINTEC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
FLINTEC稱重傳感器SLB系列SLB-5KLB-BH-C3技術參數
