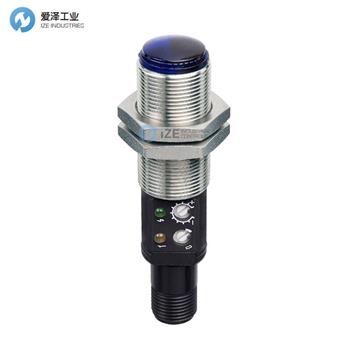

TELCO傳感器SMP8500MGJ產品參數
Product Data | |
Operation Mode | Diffuse Proximity |
Function | Both |
Supply Voltage | 10 - 30 V dc |
Light Source | Infrared (880 nm) |
Control Feature | Sensitivity pot. and light/dark switch |
Sensing Range | 0,5 m |
Output | PNP |
Output Status | N.C./N.O. |
Housing | M18 x 1 |
Housing Material | Stainless Steel |
Connection | 4 pin, M12 plug |
Technical Data | |
Supply Voltage | 10 - 30 V dc |
Voltage Ripple | 0.15 |
Reverse Polarity Protected | Yes |
Short Circuit Protected | Yes |
Current Consumption | 14 mA |
Max. Output Load | 120 mA / 30 V dc |
Max. Residual Voltage | 1,5 V |
Max. Operation Frequency | 250 Hz |
Response Time ton / toff | 2 ms / 2 ms |
Power On Indicator | Green LED |
Output Indicator | Yellow LED |
Hysteresis | Approx. 5 - 15 % |
Opening Angle | +/- 4° |
Housing Material, Front Lens | Polycarbonate |
Housing Material, Sensor Housing | Stainless Steel (AISI 316 / 1.4401) |
TELCO傳感器SM8000系列其他常見型號：
TELCO SMP 8500 MG 5
TELCO SMP 8500 MG J
TELCO SMP 8500 MG T3
TELCO SMP 8500 PG 5
TELCO SMP 8500 PG J
TELCO SMP 8500 PG T3
