Product name

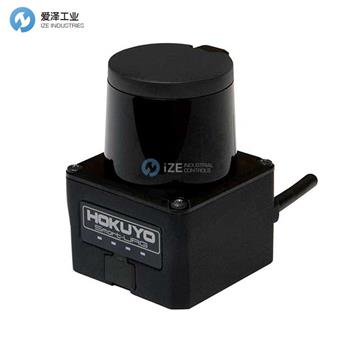

Scanning Laser Range Finder

Model

UST-05LN

Supply voltage

DC 12V/DC 24V (operation range 10 to 30V, ripple within 10%)

Supply current

150mA (DC 24V) or less (during start up about 400mA is necessary.)

Light source

Laser semiconductor (905nm), Laser class 1(IEC60825-1:2007, Accession number:1420210-000)

Detection range and object

60mm to 5000mm (white Kent sheet)
60mm to 2000mm (diffuse reflectance 10% )
Minimum detectable size 130mm (changes according to distance)*1

Accuracy

60mm to 5000mm ±40mm*2

Standard deviation

σ<20mm*2

Scan angle

270°

Scan speed

25msec (motor speed 2400rpm)

Angular resolution

0.5°

Start up time

Within 10 sec (start up time differs if malfunction is detected during start up)

Outputs

Photo-coupler, open collector output Max DC 30V 50mA
Output 1: Output 1 OFF during object detection
Output 2: Output 2 OFF during object detection
Output 3: Output 3 OFF during object detection
Malfunction output: ON during normal operation, OFF during malfunction
Synchronization output: Synchronization signal during Master/Slave operation.
Note: Output 1 to 3 are switched OFF during malfunction state

Inputs

Photo-coupler, common anode, power supply is 4mA when input is ON
Input 1 to 5: Area switching inputs (refer Table1)
Synchronization input: Input synchronization signal during Slave operation.

Output response time*3

OFF : 66msec to 3241msec
ON : 66msec to 3241msec

Hysteresis

Hysteresis 6.25%
Hysteresis 3.125%
No Hysteresis (Default)

Interface

USB

LED display

Blue LED: ON during normal operation,blink during the start up
Output 1 LED(Orange): ON during object detection
Output 2 LED(Orange): ON during object detection
Output 13LED(Orange): ON during object detection

Synchronization function

Master/Slave Synchronization mode is set using the configuration software*4
Slave synchronization mode (0°)
Slave synchronization mode (90°)
Slave synchronization mode (180°)
Slave synchronization mode (270°)

Ambient illumination

Less than 80,000lx
Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction

Ambient temperature and humidity

-10°C to +50°C, below 85%RH (without dew, frost)

Storage temperature and humidity

-30°C to +70°C, below 85%RH (without dew, frost)

Vibration resistance

10 to 55Hz　double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
55 to 200Hz 98m / s2 sweep of 2min for 1hr in each X,Y and Z direction

Shock resistance

196m/s2 (20G)　each X,Y and Z direction 10 times.

Insulation resistance

10MΩ,　DC 500V

Protective structure

IP65

EMC standards

(EMI)
EN61326-1：2013
EN55011：2009 + A1：2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1：2008 + A2：2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010

Weight

130g

Material

Upper case: Polycarbonate, Lower case: Aluminum

Dimensions (W×D×H)

50×50×70mm
