RECHNER電容式傳感器KAS-80-30-A-D30-PTFE/MS-Y5-1-HP 814400技術參數
Technical data | Flush mountable |
Operating distance Sn | 20 mm |
Operating distance min. / max. adjustable | 0.5...30 mm |
Electrical version | 4-pin DC |
Output function | Antivalent |
Type PNP | KAS-80-30-A-Y5 |
Art.-No. | 814 400 |
Connection diagram No. | 6 |
Operating voltage (UB) | 10…35 V DC |
Output current max. (Ie) | 2 x 250 mA |
Voltage drop max. (Ud) | ≤ 2.0 V |
Permitted residual ripple max. | 0.1 |
No-load current (Io) | Typ. 15 mA |
Frequency of operating cycles max. | 200 Hz |
Permitted ambient temperature | -25…+70 °C |
LED-display | Green / yellow |
Protective circuit | Built-in |
Degree of protection IEC 60529 | IP 67* |
Norm | EN 60947-5-2 |
Connection | Flange connector M 12 x 1 |
Housing material | Brass |
Active surface | PTFE (FDA 21 CfR 177.1550) |
Lid | PA / PPO |
Media optimized | Yes |
RECHNER電容式傳感器KAS-80-30-A-D30-PTFE/MS-Y5-1-HP 814400產品介紹
電容式傳感器 80 系列 - PNP
外殼直徑 30 毫米
? 外殼材料：黃銅
? 感應距離 0.5...30 mm 可調
? 帶法蘭連接器 M 12 x 1

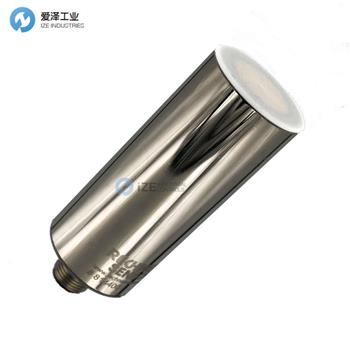

Capacitive Sensors Series 80 - PNP
Housing ? 30 mm
? Housing material: Brass
? Sensing distance 0.5...30 mm adjustable
? With flange connector M 12 x 1
RECHNER電容式傳感器80系列其他常用型號：
RECHNER KAS-80-23-A-D20-PA-Z02-1-HP 812800
KAS-80-23-A-M22-PTFE-Z02-1-HP 812900
KAS-80-23-A-M22-PTFE-100C-Z02-1-HP 812910
KAS-80-23-A-M22-PPO-Z02-1-HP 813400
KAS-80-23-S-M22-PPO-Z02-1-HP 813600
KAS-80-30-A-D30-PTFE/MS-Z02-1-HP 814200
KAS-80-30-A-D30-PTFE/MS-Y5-1-HP 814400
KAS-80-30-A-M32-PTFE/MS-Z02-1-HP 815800
KAS-80-30-A-M32-PTFE-Z02-1-HP 815830
KAS-80-30-A-M32-PTFE-100C-Z02-1-HP 815831
KAS-80-30-A-M32-PTFE/MS-Y5-1-HP 816000
KAS-80-30-S-M32-PTFE/MS-Z02-1-HP 816200
RECHNER CAPACITIVE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RECHNER電容式傳感器KAS-80-30-A-D30-PTFE/MS-Y5-1-HP 814400的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RECHNER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
