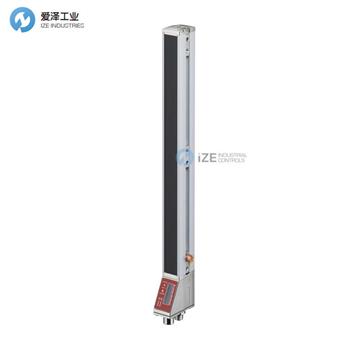

LEUZE光幕發射器CSL710-T10-320.A-M12技術參數
Series | 710 |
Operating principle | Throughbeam principle |
Device type | Transmitter |
Contains | 2x BT-NC sliding block |
Application | Precise object detection |
Special version | Crossed-beam scanning |
Operating range | 0.3 ... 7 m |
Operating range | Guaranteed operating range |
Operating range limit | 0.2 ... 9 m |
Operating range limit | Typical operating range |
Measurement field length | 320 mm |
Number of beams | 32 Piece(s) |
Beam spacing | 10 mm |
Light source | LED, Infrared |
Wavelength | 940 nm |
Transmitted-signal shape | Pulsed |
Minimum object diameter | 20 mm |
Protective circuit | Polarity reversal protection |
Supply voltage UB | 18 ... 30 V, DC |
Residual ripple | 0 ... 15 %, From UB |
Open-circuit current | 0 ... 165 mA, The specified values refer to the entire package consisting of transmitter and receiver. |
Design | Cubic |
Dimension (W x H x L) | 29 mm x 35.4 mm x 393 mm |
Housing material | Metal |
Metal housing | Aluminum |
Lens cover material | Plastic / PMMA |
Net weight | 500 g |
Housing color | Red |
Type of fastening | Groove mounting |
Ambient temperature, operation | -30 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 65 |
Protection class | III |
Certifications | c UL US |
Standards applied | IEC 60947-5-2 |

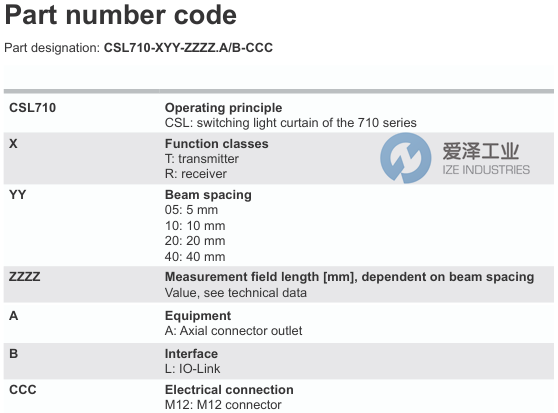

LEUZE光幕發射器CSL710系列選型
LEUZE光幕CSL710系列其他常用型號：
LEUZE CSL710-T10-1280.A-M12
LEUZE CSL710-R10-1280.A/L-M12
LEUZE CSL710-T10-1120.A-M12
LEUZE CSL710-R10-1120.A/L-M12
LEUZE CSL710-T10-960.A-M12
LEUZE CSL710-R10-960.A/L-M12
LEUZE CSL710-T10-800.A-M12
LEUZE CSL710-R10-800.A/L-M12
LEUZE CSL710-T10-640.A-M12
LEUZE CSL710-R10-640.A/L-M12
LEUZE CSL710-T10-480.A-M12
LEUZE CSL710-R10-480.A/L-M12
LEUZE CSL710-T10-320.A-M12
LEUZE CSL710-R10-320.A/L-M12
LEUZE CSL710-T10-160.A-M12
LEUZE CSL710-R10-160.A/L-M12
LEUZE LIGHT CURTAIN TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LEUZE光幕發射器CSL710-T10-320.A-M12的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for LEUZE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
LEUZE光幕發射器CSL710系列CSL710-T10-320.A-M12技術參數及選型
