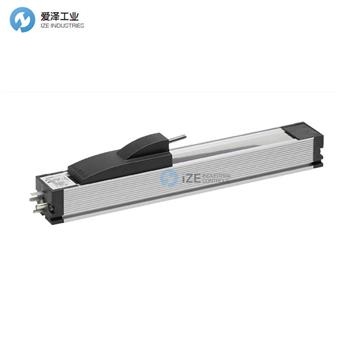

NOVOTECHNIK線性電位器TLH-1250技術參數
Type designations | TLH 1250 |
Electrical Data | |
Defined electrical range | 1250 mm |
Electrical stroke | 1270 mm |
Nominal resistance | 10 kΩ |
Resistance tolerance | 20 ±% |
Independent linearity | 0.03 ±% |
Repeatability | 0.01 mm |
Recommended operating wiper current | < 1 μA |
Maximum wiper current (due to system malfunction) | 10 mA |
Maximum permissible applied voltage | 42 V |
Effective temperature coefficient of the output-to-applied voltage ratio | typical 5 ppm/K |
Insulation resistance (500 VDC) | ≥ 10 MΩ |
Dielectric strength (500 VAC, 50 Hz) | ≤ 100 μA |
Mechanical Data | |
Body length (dimension A) | 1418 ±2 mm |
Mechanical stroke (dimension B) | 1276 ±2 mm |
Total weight | 2110 g |
Weight of sliding part | 45 g |
Permitted movement of ball coupling | ±1° angular offset, ±1.5 mm parallel offset |
Operating force | |
horizontal | ≤ 0.4 N |
vertical | ≤ 1.1 N |
Environmental Data | |
Temperature range | -30 ... +100 °C |
Vibration | 5...2000 Hz |
Shock | 50 g |
Life | > 100 x 106 movem. |
Operating speed | 10 m/s max. |
Operational acceleration | 200 (20 g) m/s2 max. |
Protection class | IP40 (DIN EN 60529) |
NOVOTECHNIK線性電位器TLH系列介紹
TLH 傳感器專為控制、調節和測量應用中的位移或長度的直接、精確測量而設計。
特點
? 無桿設計
? 運行速度極高
? 球形聯軸器可避免側向載荷
? 使用壽命長 >100 x 106 次運動
? 出色的線性度 - 高達 ±0.02 %
? 高分辨率 - 優于 0.01 毫米
? 實時輸出
? 符合 DIN 43650 標準的連接器（液壓連接器）
? 防護等級 IP 54 - 滑塊側朝下安裝
TLH transducers are designed for the direct, accurate mea surement of displacement or length in control, regulation and measuring applications.
Features
? rodless design
? very high operating speed
? ball coupling avoids side loads
? long life >100 x 106 movements
? outstanding linearity - up to ±0.02 %
? high resolution – better than 0.01 mm
? real-time output
? connector to DIN 43650 (hydraulic connector)
? protection class IP 54 - mounted slider-side down
NOVOTECHNIK線性電位器TLH系列其他常用型號：
NOVOTECHNIK TLH-0100
NOVOTECHNIK TLH-0130
NOVOTECHNIK TLH-0150
NOVOTECHNIK TLH-0225
NOVOTECHNIK TLH-0300
NOVOTECHNIK TLH-0360
NOVOTECHNIK TLH-0450
NOVOTECHNIK TLH-0500
NOVOTECHNIK TLH-0600
NOVOTECHNIK TLH-0750
NOVOTECHNIK TLH-0900
NOVOTECHNIK TLH-1000
NOVOTECHNIK TLH-1250
NOVOTECHNIK TLH-1500
NOVOTECHNIK TLH-1750
NOVOTECHNIK TLH-2000
NOVOTECHNIK TLH-2250
NOVOTECHNIK TLH-2500
NOVOTECHNIK TLH-2750
NOVOTECHNIK TLH-3000
