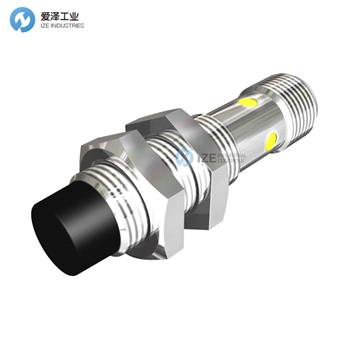

PULSOTRONIC電感式傳感器KJ4-M12MN60-DPS-V2 08317624265技術參數
Specification | |
Operating voltage | 10 - 30 VDC |
Max. ripple | ≤ 10 % |
Voltage drop | 2,4 V |
Max. load current | 200 mA |
No load current | ≤ 13 mA |
Leakage current | ≤ 10 μA |
Switching frequency | 800 Hz |
Switching hysterese | ≤ 15 % |
Operating temperature | -25 ° C to 70 ° C |
Temperature drift | ≤ 10 % |
Repeat accuracy | ≤ 5 % |
Swiching state | LED |
Time delay | 300 ms |
Short-circuit proof | yes |
Overload protection | yes |
Reverse voltage protection | yes |
Protection category | IP67 |
EMC-level | DIN EN 60947-5-2: 2008 |
Housing material | Brass, nickel plated |
Material active face | Pocan KU 2-7503/1 + Batch RAL 9004LS |
Utilisation category | DC 13 |
Contact material | Cu |
Contact surface material | NiAu |
Contact holder | Makrolon 2405 farblos |
Termination | Connector M12 4pin |
FIT / MTTF acc. SIEMENS 29500 | 51,90 / 2200y |
PULSOTRONIC電感式傳感器其他常用型號：
PULSOTRONIC KJ10-M30MB60-DPS 08317661100
PULSOTRONIC KJ10-M30MB60-DPS-X0409 08317661102
PULSOTRONIC KJ4-M12MB40-DPS 08317824900
PULSOTRONIC KJ4-M12MB40-DPS-X0409 08317824902
PULSOTRONIC KJ4-M12MB40-DPS-X0419 08317824907
PULSOTRONIC KJ4-M12MN60-DPS-V2 08317624265
PULSOTRONIC KJ4-M12MN170-DPS-V2-X0006 08317624236
PULSOTRONIC KJ1,5-G6,5EB50-DPS-V1 08317611248
PULSOTRONIC KJ3-M8EB45-DPS-V1 08310000014
PULSOTRONIC KJ4-M12MN45-DZS 08317625700
