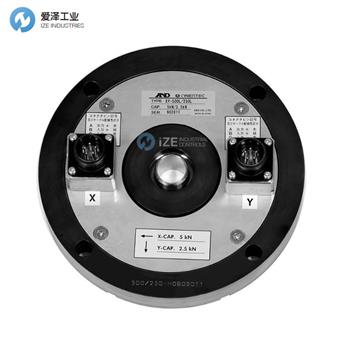

A&D稱重傳感器XY-1000L/500L技術參數
Specifications | |
Rated capacity (R.C.) | X-500 kg Y-250 kg (X:5 kN, Y:2.5 kN) |
Rated output (R.O.) | 2 mV/V ±1% (for X, Y) |
Non linearity | 0.1% R.O. |
Hysteresis | 0.05% R.O. |
Repeatability | 0.05% R.O. |
Recommended excitation voltage | 5 V to 10 V AC/DC |
Max. excitation voltage | 20 V AC/DC |
Zero balance | ± 1% R.O. |
Input terminals bridge resistance | 350 Ω ± 3.5 Ω |
Output terminals bridge resistance | 350 Ω ± 3.5 Ω |
Insulation resistance | 2000 MΩ (B/E DC 50 V) |
Cable diameter/length | φ7, 4-core shielded cable, 10 m, connector end |
Zero point temperature effect | 0.05% R.O./10 °C |
Temperature effect on output | 0.05% Load/10 °C |
Temperature compensated range | –10 °C to +70 °C |
Temperature usable range | –10 °C to +70 °C |
Safe overload | 150% R.L. |
Limited overload | 200% R.L. |
Dustproof/Waterproof | IP54 |
Natural frequency | More than 1 kHz |
Crosstalk | 2.5 N or less (5 kN / 2.5 kN) |
A&D稱重傳感器X-Y系列特點
特點
適用于輪胎均勻性測量等
使用一個裝置同時測量 X 和 Y 方向
結構設計堅固耐用
X 和 Y 軸同時加載時相互干擾最小
Features
Ideal for tire uniformity measurement, etc.
Simultaneous measurement in the X and Y directions with one unit
Structure designed for excellent toughness and durability
Minimal mutual interference with simultaneous loading on the X and Y axes
A&D稱重傳感器X-Y系列其他常用型號：
A&D XY-500L/250L
A&D XY-750L/250L
A&D XY-1000L/500L
A&D Load Cells NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于A&D稱重傳感器XY-1000L/500L的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for A&D products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
