ABB 液位變送器LMT200E2S6R1B1D3L2H1CSR5規格描述
LMT200 |
E2 Approval - ATEX / IECEx Flameproof Housing |
S6 Probe Wetted Material - 316L SS |
R1 Probe Style and Probe Type - 0.625 in. Rigid Probe, -40 ...250 °F |
B1 Mounting Orientation - Bottom left connected electronic housing |
D3 Housing - 316L Stainless Steel with 2 x M20 x 1.5 in. |
L2 Display - With Through the Glass (TTG) Push Buttons, Display and Glass Cover |
H1 Output - Single 4 ... 20 mA + HART |
CS Certificates - SIL2 (HFT=0) and SIL3 (HFT=1) - certified acc. to IEC61508 |
R5 Calibration Type - 5-point calibration verification certificate, factory default 100, 75, 50, 25 and 0 % of measurement length,or customer specified points ML code is not recognized Measuring Length : 2000 mm |

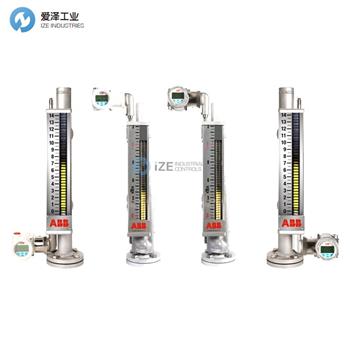

ABB 液位變送器LMT200系列簡介
MT200 基于磁致伸縮原理。
1. 設備電子元件以固定間隔產生低能電流脈沖。
2. 電脈沖產生磁場，該磁場沿傳感器管內的專用導線傳播。
3. 導線和磁性浮子周?chē)拇艌?chǎng)相互作用導致導線中產生扭轉應力波。該扭轉以已知速度沿導線傳播，從磁性浮子的位置開始，向?qū)Ь€的兩端傳播。
4. 發射器組件中放置的專利傳感元件將接收到的機械扭轉轉換為電返回脈沖。
5. 基于微處理器的電子元件測量起始脈沖和返回脈沖之間的經過時間（飛行時間），并將其轉換為與浮子液位成比例的位置測量值。
特點：
出廠校準
高精度：滿量程的 .01% 或 +/- 1.27 毫米
無需重新校準：設置后即可忘記
波形顯示，設置簡便
不受攪拌、泡沫或乳化層的影響
無需示波器
設計用于外部安裝到 K-TEK KM26 或其他
磁力液位計
高級傳感器（專利號 5,473,245）
帶 HMI 顯示屏的本地指示
帶獨立現場端子的雙隔間外殼
隔間
環路供電，探頭長度為 15.24 米（50 英尺）
總和/或界面液位測量
溫度范圍：-195.5 至 426.6oC（-320 至 800oF）
帶選項
現場可更換/升級電子模塊
內置 RFI/EMI 濾波器
數字通信
在線自我驗證
選項：
兩級指示
玻璃觀察窗
316 不銹鋼外殼
內置浪涌保護
The LMT200 is based upon the magnetostrictive principle.
1. The device electronics generates a low energy current pulse at fixed intervals.
2. The electrical pulses create a magnetic field which travels down a specialized wire inside the sensor tube.
3. The interaction of the magnetic field around the wire and the magnetic float causes a torsional stress wave to be induced in the wire. This torsion propagates along the wire at a known velocity, from the position of the magnetic float and toward both ends of the wire.
4. A patented sensing element placed in the Transmitter assembly converts the received mechanical Torsion into an electrical return pulse.
5. The microprocessor-based electronics measures the elapsed time between the start and return pulses (Time of Flight) and converts it into a position measure- ment which is proportional to the level of the float.
Features:
Calibrated from the factory
High Accuracy: .01% of Full Scale or +/- 1.27mm
Never Requires Re-Calibration: Set It & Forget It
Easy setup with waveform display
Not affected by agitation, foam or emulsion layers
No oscilloscope required
Designed to Mount Externally to K-TEK KM26 or other
Magnetic Level Gauge
Superior Sensor (Patent #5,473,245)
Local Indication with HMI Display
Dual Compartment Housing with Separate Field Terminal
Compartment
Loop Powered to 15.24m (50ft) Probe Length
Total and/or Interface Level Measurement
Temperature Range: -195.5 to 426.6oC (-320 to 800oF)
with options
Field Replaceable / Upgradable Electronics Module
Built-in RFI / EMI Filter
Digital Communications
Online Self-verification
Options:
Two Level Indications
Glass Viewing Window
316 Stainless Steel Enclosure
Built-in surge protection
ABB液位變送器LMT200系列其他常用型號：
ABB LMT200E2S6R1B1D3L2H1CSR5
ABB LMT200.M1.S6.R1.B1.D2.L2
ABB LMT200.M1.S6.R1.B1.D2.L2. H1-.M5
ABB LMT200M1S6R1B1D
