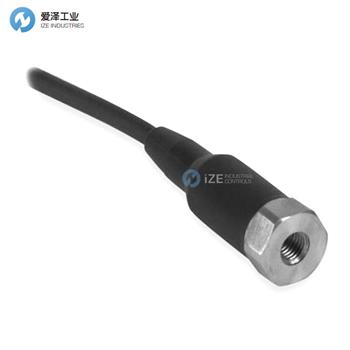

PCB加速計M608A11/030BZ介紹
English: | SI: | |
Performance | ||
Sensitivity (±15 %) | 100 mV/g | 10.2 mV/(m/s2) |
Measurement Range | ±50 g | ±490 m/s2 |
Frequency Range (±3 dB) | 30 to 600000 cpm | 0.5 to 10000 Hz |
Resonant Frequency | 1320 kcpm | 22 kHz |
Broadband Resolution (1) | 350 μg | 3434 μm/sec2 |
Non-Linearity | ±1 % | ±1 % |
Transverse Sensitivity | ≤7 % | ≤7 % |
Environmental | ||
Overload Limit (Shock) | 5000 g pk | 49050 m/s2 pk |
Temperature Range | -65 to +250 °F | -54 to +121 °C |
Temperature Response | See Graph %/°F | See Graph %/°F |
Enclosure Rating | IP68 | IP68 |
Electrical | ||
Settling Time (within 1% of bias) | ≤2.0 sec | ≤2.0 sec |
Discharge Time Constant | ≥0.3 sec | ≥0.3 sec |
Excitation Voltage | 18 to 28 VDC | 18 to 28 VDC |
Constant Current Excitation | 2 to 20 mA | 2 to 20 mA |
Output Impedance | <150 Ohm | <150 Ohm |
Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC |
Spectral Noise (10 Hz) | 8 μg/√Hz | 78.5 (μm/sec2)/√Hz |
Spectral Noise (100 Hz) | 5 μg/√Hz | 49.1 (μm/sec2)/√Hz |
Spectral Noise (1 kHz) | 4 μg/√Hz | 39.2 (μm/sec2)/√Hz |
Electrical Isolation (Case) | >100000000 Ohm | >100000000 Ohm |
Physical | ||
Size - Hex | 9/16 in | 14 mm |
Size - Height | 2.5 in | 64 mm |
Weight (with cable) | 3.5 oz | 99.3 gm |
Mounting | Stud | Stud |
Mounting Thread | 1/4-28 Female | 1/4-28 Female |
Mounting Torque | 2 to 5 ft-lb | 2.7 to 6.8 Nm |
Sensing Element | Ceramic | Ceramic |
Sensing Geometry | Shear | Shear |
Housing Material | Stainless Steel | Stainless Steel |
Sealing | Molded | Molded |
Electrical Connector | Molded Integral Cable | Molded Integral Cable |
Electrical Connection Position | Top | Top |
Cable Length | 30 ft | 9.1 m |
Cable Type | Polyurethane | Polyurethane |
PCB加速計M608A11/030BZ產品介紹
低成本、通用、工業陶瓷剪切 ICP? 加速度計，100 mV/g，頂部出口，30 英尺集成電纜，單點 ISO 17025 認證校準
低成本工業加速度計，集成 30 英尺電纜至鈍端，100 mV/g，通用、潛水、陶瓷剪切 ICP?，0.5 至 10k Hz，頂部出口。
靈敏度：(±15%)100 mV/g (10.2 mV/(m/s2))
頻率范圍：(±3dB)30 至 600000 cpm (0.5 至 10000 Hz)
傳感元件：陶瓷
測量范圍：±50 g (±490 m/s2)
重量：3.5 盎司 (99.3 克)
Low cost, general purpose, industrial ceramic shear ICP? accel., 100 mV/g, top exit, 30-ft integral cable, single point ISO 17025 accredited calibration
Low-cost industrial accelerometer with integral 30 ft. cable to blunt termination, 100 mV/g, general purpose, submersible, ceramic shear ICP?, 0.5 to 10k Hz, top exit.
Sensitivity: (±15%)100 mV/g (10.2 mV/(m/s2))
Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
Sensing Element: Ceramic
Measurement Range: ±50 g (±490 m/s2)
Weight: 3.5 oz (99.3 gm)
PCB加速計其他常用型號：
PCB M608A11/030BZ
PCB 608A11
PCB 608A11/030BZ
PCB 608A11/020BZ
PCB 608A11/050BZ
PCB Accelerometer NEW + ORIGINAL+ ONE YEAR WARRANTY
