SCHNEIDER溫控器NSYCCOTHC技術參數
Specifications | |
Main | |
Range | ClimaSys |
product name | ClimaSys CC |
Product or component type | Simple thermostat |
Temperature setting range | 0…60 °C |
Information displayed | Temperature in °C |
Complementary | |
Input voltage | 250 V |
Sensor type | Bimetal |
Contacts type and composition | NC |
Contact resistance | 10 mOhm |
Service life in cycles | 100000 cycles |
Maximum switching capacity | 2 A 120...250 V AC inductive pf: 0.6 |
Electrical connection | 4 terminals, clamping capacity: 2.5 mm2 |
Mounting mode | Clipped |
Height | External: 68 mm |
Width | External: 33 mm |
Depth | External : 44 mm |
Net weight | 40 g |
Mounting location | Spacial upright |
Ambient air temperature for operation | -20…80 °C |
IP degree of protection | IP20 |
Hysteresis | 7 K +/- 0.4K |
Number of outputs | 1 heating function |
Material | PC |
Colour | Light grey |
Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
Product certifications | UL |
SCHNEIDER溫控器NSYCCOTHC產品介紹
ClimaSys CC 簡易溫控器。250V AC。68 x 33 x 44 毫米。傳感器為雙金屬，帶常閉觸點類型。1 個加熱功能。電氣連接采用 4 個 2.5mm2 端子。安裝方式為 35mm DIN 導軌、橫軌、安裝板（空間直立）。PC 材質。淺灰色。自熄性 UL94（材料 V0）。防護等級 IP20。

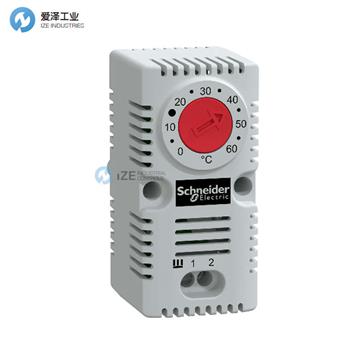

ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm2. Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
SCHNEIDER溫控器ClimaSys CC系列其他常用型號：
SCHNEIDER NSYCCOTHC
SCHNEIDER NSYCCOTHCF
SCHNEIDER NSYCCOTHD
SCHNEIDER NSYCCOTHDF
SCHNEIDER NSYCCOTHI
SCHNEIDER NSYCCOTHO
SCHNEIDER NSYCCOTHOF
