PAVONE稱重變送器DAT400規格描述
Technical Specifications | |
Measuring range: | -0.5 ÷ +3.5 mV/V (-3.9 ÷ +3.9 mV/V optional) |
Input sensitivity: | 0.02 μV/count |
Full scale non-Linearity: | <0.01% |
Gain drift: | < 0.001% FS/°C |
Display: | 6 digit, red LED (7 segments), h 14 mm |
A/D Converter: | 24 bit |
Internal Resolution: | > 16.000.000 points |
Trasducer input voltage: | 5 V (max 6 load cells 350 Ohm) |
Visible resolution (in divisions): | 60000 |
Divisions value (adjustable): | x1, x2, x5 |
Decimal figures range: | 0 ÷ 3 |
Temperature range: | -10 ÷ +50°C (max umidity 85% without condensation) |
Storage temperature: | -20 ÷ +70 °C |
Filter: | 0.1 ÷ 25 Hz |
Logic output: | 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each) |
Logic inputs: | 2 optoisolated 24 Vcc PNP (External voltage) |
Serial port: | USB, RS232C with ASCII or Modbus RTU protocols |
Power supply: | 24 Vcc ±15% - power 5 W |
Regulatory compliance: | EN61326-1, EN55011 and EN55014 for EMC; EN61010-1 for electrical security |
Fieldbus: | Devicenet |
Dimensions and weight: | 106 x 90 x 58 mm (L x H x P); 250 g |
Baud rate: | 2400, 9600, 19200, 38400, 115200 adjustable (for RS232) |
Transmission distance: | 15m (RS232C) |

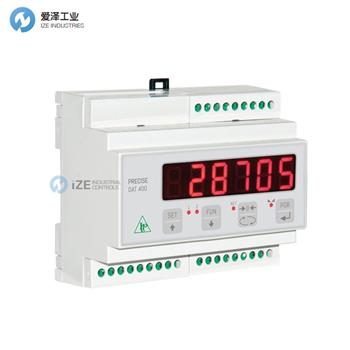

PAVONE稱重變送器DAT400產品介紹
DAT 400 Devicenet 稱重變送器由 Pavone Systems 獨家銷售，保證高性能和可靠性。DAT 400 Devicenet 可與 Tester 1008 一同購買，后者可簡化編程的上傳和下載功能。配置和校準既可以通過前面板設置，也可以通過 PC 設置。該產品可以根據客戶的需求進行定制。它具備用于動態測量的峰值保持功能和螺釘端子塊。PWS: 31/2015
The DAT 400 Devicenet weight transmitter is sold exclusively by Pavone Systems and it guarantees high performance and reliability. DAT 400 Devicenet can be bought in combination with Tester 1008, which facilitates the upload and download functions for the programming. Configuration and calibration can be set up from the front panel or from a PC. The product can be customized according to customer's needs. It has a peak hold function for dynamic measures and screw terminal blocks. PWS: 31/2015
PAVONE稱重變送器其他型號：
PAVONE DAT400
PAVONE PSDA0040
PAVONE PSDA0400
PAVONE PSDA0402
PAVONE PSDA0039
PAVONE PSDA0416
PAVONE PSDA0401
PAVONE PSDA0409
PAVONE PSDA0075
PAVONE PSDA0070
PAVONE Weighing transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PAVONE稱重變送器DAT400的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PAVONE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
PAVONE稱重變送器DAT400產品參數
