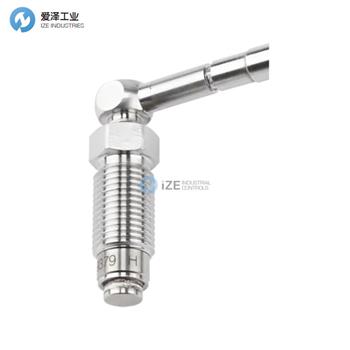

KISTLER壓力傳感器4021B30HAP1技術參數
Measuring ranges | |
Maximum measuring range [bar] | 3000 bar |
Product type | |
Pressure sensor type | Universal static pressure |
Metrological characteristics | |
Linearity | ±0.5 %FSO |
Hysteresis | <0.8 %FSO |
Relative standard deviation of repeatability | 0.1 %FSO |
Electrical properties | |
Output signal type | Voltage or Current (Piezoresistive, PR) |
Supply voltage range | 18 … 30 V |
Maximal current consumption | 50 mA |
Dynamical properties | |
Natural frequency | 165 kHz |
Frequency range (-3dB) | 1 |
Certificates and Standards | |
Degree of protection EN 60529 | IP65 |
Certification | none |
Operation and installation | |
Minimal operating temperature [°C] | 0 °C |
Maximum operating temperature [°C] | 350 °C |
Compensated temperature range | 25 … 350 °C |
Applications | Monitoring and control in injection molding |
Cable properties | |
Cable included | Yes - fixed cable |
Interfaces | |
Connector type | Fischer 103 5-pole neg. |
Dimensions and materials | |
Mounting size | 7.8 mm |
Casing material | DIN 1.4542 |
Predefined cable length | 1 m |
KISTLER壓力傳感器4021B系列介紹
4021B 描述
這些測量鏈可用于同時測量壓力和溫度。它們由工廠校準的傳感器、電纜和放大器組成。這些傳感器具有非常穩定且耐高溫的壓阻式硅測量元件，直接位于高壓傳感器用的1.4542鋼或低壓傳感器用的2.4692鋼合金隔膜之后。
這些高壓和溫度壓阻式測量鏈適用于注塑機中的噴嘴和熔體壓力測量。
主要特點 / 優勢
耐高溫壓阻式壓力傳感器
即使是極短時間的壓力峰值也能記錄
借助一個傳感器同時測量壓力和溫度
控制和監控注塑機
不含傳輸液
提供電壓輸出（0 ... 10 V）或電流輸出信號（4 ... 20mA）
4021B
These measuring chains can be used to measure pressure and temperature simultaneously. They consist of a factory-calibrated sensor, cable, and amplifier. These sensors have a very stable, high temperature resistant, piezoresistive, silicon measuring element immediately behind a diaphragm of robust steel 1.4542 (for high-pressure sensors) or steel alloy 2.4692 (for low-pressure sensors).
These high pressure and temperature piezoresistive measuring chains are suitable for nozzle and melt pressure measurements in injection molding machines.
Main features / advantages
High temperature resistant, piezoresistive pressure sensor
Records even extremely short duration pressure peaks
Measures pressure and temperature with one sensor
Controls and monitors injection molding machines
Contains no transmission fluid
Voltage output (0 ... 10 V) or current output signal (4 ... 20mA)
KISTLER壓力傳感器其他常用型號：
KISTLER 4021B30HAP1
KISTLER 4021B30H0P1
