EPRO傳感器PR6423系列技術參數
Performance | PR6423 |
Linear Measurement Range | 2 mm (80 mils) |
Initial Air Gap | 0.5 mm (20 mils) |
Incremental Scale Factor (ISF) | ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F) |
Deviation from best fit straight line (DSL) | ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
Measuring Target | |
Minimum Shaft Diameter | 25 mm (0.79”) |
Target Material (Ferromagnetic Steel) | 42CrMo4 (AISI/SAE 4140) Standard Other (On Request) |
Environmental, General | |
Protection Class | IP66, IEC 60529 |
Operating Temperature Range | Sensor incl. 1m Cable:-35 to +180°C (-31 to 356°F) |
Material | Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated) |
Weight (Sensor with 1m Cable) | Approx. 100 grams (3.53 oz) |
EPRO傳感器PR6423系列介紹

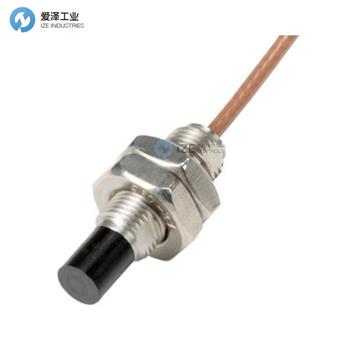

8毫米渦流傳感器
非接觸式傳感器，專為關鍵的渦輪機械應用設計，如蒸汽、燃?xì)夂退啓C(jī)、壓縮機、齒輪箱、泵和風扇，用于測量徑向和軸向的軸動態位移、位置、偏心率和轉速。
8mm Eddy Current Sensor
Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.
EPRO傳感器其他常用型號：
EPRO PR6423/00
EPRO PR6423/01
EPRO PR6423/10
EPRO PR6423/11
EPRO PR6423/000-000
EPRO PR6423/013-0D1-RAD
EPRO sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EPRO傳感器PR6423/000-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EPRO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
EPRO傳感器PR6423系列PR6423/000-000技術參數及介紹
