INTECH風速計WS3-CL產品規格
TYPE | WS3(6)-CL |
Common Specifications: | |
Accuracy | ±2%. |
Resolution | 0.2m/sec. |
Time From Power To Output Stable | 3 Seconds. |
Cable | 5m, UV resistant. |
Range | |
3 Cup: | 0~60m/sec (216Km/hr.) |
6 Cup: | 0~80m/sec (288Km/hr.) |
Wind Speed Average Time | 3 Seconds. |
Start Speed | |
3 Cup: | 1.5m/sec. |
6 Cup: | 0.45m/sec. |
Operating Temperature | -5°~60°C. (Anemometer may stop turning due to freezing below 0°C.) |
EMC Compliances | Emissions EN 55022-A. Immunity EN 50082-1. |
Safety Compliances | EN 60950. |
Dimensions | |
- Overall | H=180mm, Cup?=150mm. |
- Mounting Plate | L=70mm, W=38mm, H=6.5mm, PCD=55mm. |
Current Output Specifications: | |
Output | 4~20mA, 2 wire (Loop Powered). |
Load Resistance | 600Ω @ 24Vdc. |
Voltage Output Specifications: | |
Output | 0~5Vdc, 3 Wire (common ground) |
Power Supply Required | 12Vdc. |
RS485 Output Specifications | |
Output | RS485 |
Baud Rate | 9600 |
Format | 8 Bit, No Parity, 1 Stop Bit (non selectable). |
Protocol | MODBUS RTU. |
USB Output Specifications: | |
Output | USB (Std Male Type A, 5Vdc Powered). |
Baud Rate | 9600 |
Format | 8 Bit, No Parity, 1 Stop Bit (non selectable). |
Protocol | MODBUS RTU. |
Pulse Output Specifications: | |
Output | Pulse: 12Vdc @15mA Max. |
3 Cup: | 2 pulses per metre of wind. |
6 Cup: | 3 pulses per metre of wind. |
INTECH風速計WS-CL產品介紹
WS-CL風速計是一款高響應的三杯或六杯風速計，能夠產生與風速成比例的輸出脈沖。這個脈沖隨后經過處理和轉換，用于適配各種通信方式。該風速計由不銹鋼和陽極氧化鋁制成，整體采用不銹鋼軸、軸承和配件，具有耐用性。
風速計上的三或六個風杯經過手工平衡，確保風杯在軸上的精確平衡。該儀器在出廠之前已經過全面測試，現已準備好安裝使用。
風速計可以提供脈沖（開關閉合）輸出或4到20毫安電流輸出。通常供應的是三杯模型WS3-CL，但如果需要更高的低速精確度，也生產六杯型號WS6-CL。
該風速計可以單獨安裝在基礎支架上（如上圖所示），也可以固定在L型棒或T型棒的設備安裝臂上。
此外，還可以將其集成到全裝氣象站或中小型氣象系統中，用于更加全面的氣象監測。
The WS-CL Anemometer is a highly responsive three or six cup anemometer that produces an output pulse with a frequency proportional to the wind speed. This pulse is then processed and converted for suitable communications. The Anemometer is made from stainless steel and anodized aluminium. Stainless steel shafts, bearings, and fittings are used throughout.
The three or six cups on the head have been hand balanced to provide precision balancing of the cup assembly on the shaft. This instrument has been thoroughly tested before leaving the factory and is ready to be installed.
The Anemometer can be supplied with a Pulse (switch closure) or 4 to 20mA Output.
The 3 Cup Anemometer WS3-CL is normally supplied but if low speed accuracy is required we also manufacture a 6 Cup version WS6-CL.

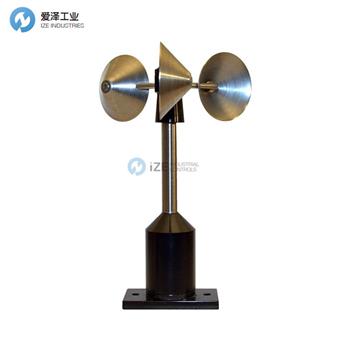

It can be supplied free standing on a Base Mounting Plate (as picture above), or attached to a L Bar or T Bar Equipment Mounting Arm.
This unit can also be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems.
INTECH風速計其他常見型號：
INTECH WS3-CL
INTECH WS6-CL
INTECH Anemometer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于INTECH風速計WS3-CL的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
