INTECH風向標WD-CL產品規格
TYPE | WD-CL |
Common Specifications: | |
Sensor Type | Rotating vane. |
Range | 10°~350° (±10° dead band at North). |
Accuracy | ±3% max (10°~350°). |
Linearity Error | ±2% max (10°~350°). |
Cable | 5m, UV Resistant. |
Rotation Life | 10,000,000 cycles. |
Operating Temperature | -5°~60°C. |
Temperature Error | ±350ppm/°C typical. |
EMC Compliances | Emissions EN 55022-A. Immunity EN 50082-1. |
Safety Compliances | EN 60950. |
Dimensions | |
-Overall | L=410, H=230mm. |
-Mounting Plate | L=70mm, W=38mm, H=6.5mm, PCD=55mm. |
Current Output Specifications: | |
Output | 4~20mA, 2 wire (Loop Powered). |
Load Resistance | 500Ω @ 24Vdc. |
Supply Voltage | 12~24Vdc. |
Range | 4mA = 0°(north), 8mA = 90°(east), 12mA = 180°(south), 16mA = 270°(west). |
Voltage Output Specifications: | |
Output | 0~5Vdc, 3 Wire (common ground). |
Damping | 2min Nominal over 90°. |
Power Supply Required | 12Vdc. |
Potentiometer Output Specifications: | |
Transducer | Potentiometer 10,000Ω. |
Wiper Output | 1MΩ in series. |
INTECH風向標WS-CL產品介紹
WD-CL風向標是一款響應迅速且多功能的風向標。其主體由不銹鋼和陽極氧化鋁制成，全體采用不銹鋼軸、軸承和配件。配備精密電位計，與風向標軸相連接，提供與風向成比例的模擬輸出。為了確保平衡，尾翼裝配上配有配重，以實現軸上的精準平衡。
風向標可以提供電位計（10千歐）或4到20毫安輸出。
4到20毫安輸出的定義為：
0度（正北）時為4毫安
180度（正南）時為12毫安
360度（再次正北）時為20毫安
該設備可以單獨安裝在基礎支架上（如上圖所示），也可以固定在L型棒或T型棒的設備安裝臂上。
此外，還可以將其集成到全裝氣象站或中小型氣象系統中，用于更全面的氣象監測。
The WD-CL Wind Vane is a highly responsive and versatile wind vane. The vane body is made from stainless steel and anodised aluminium. Stainless steel shafts, bearings and fittings are used throughout. A precision potentiometer is coupled to the vane shaft to provide an analogue output proportional to the wind direction. A counterweight provides precision balancing of the tail assembly on the shaft.
The Wind Direction Vane can be supplied with a Potentiometer (10kohms) or 4 to 20mA Output.
4 to 20mA output is:
4mA at 0 deg North
12mA at 180deg South
20mA at 360 deg North

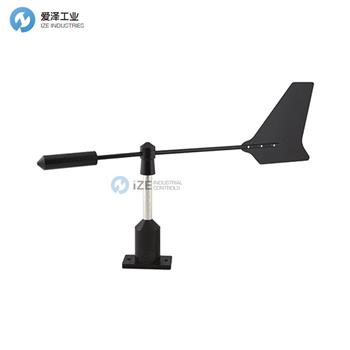

It can be supplied free standing on a Base Mounting Plate (as picture above), or attached to a L Bar or T Bar Equipment Mounting Arm.
This unit can also be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems.
INTECH風向標其他常見型號：
INTECH WD-CL
INTECH wind vane NEW + ORIGINAL+ ONE YEAR WARRANTY
