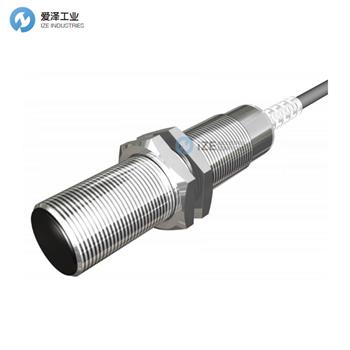

PULSOTRONIC傳感器KJ5-M18MB50-ANU技術參數
Technical Specification | |
Special features | Output Voltage 1 ... 9 Volt |
Operating voltage | 11 - 35 VDC |
Max. ripple | ≤ 10 % |
No load current | ≤ 5 mA |
Switching frequency | 400 Hz |
Operating temperature | -25 ° C to 70 ° C |
Temperature drift | +/-5 % |
Repeat accuracy | ≤ 1% |
Linearity | ≤ 5% |
Analog output | Pulso_has1 |
Time delay | 300 ms |
Resolution | 1,78 V/mm |
Reverse voltage protection | yes |
Protection category | IP67 |
EMC-level | DIN EN 60947-5-7: 2004-06 |
Housing material | Brass, nickel plated |
Material active face | PCB |
Cable length | 2 m |
Utilisation category | DC 13 |
Cable material | PVC LIYY grau (grey) |
Nominal operating voltage | 24 V DC |
Cable cross | 3x 0.34 mm2 |
interanl Load | > 1 kOhm |
FIT / MTTF acc. to SIEMENS 29500 | 88,38 / 1292y |
PULSOTRONIC傳感器其他常用型號：
PULSOTRONIC KJ3-M12MB50-ANU
PULSOTRONIC KJ5-M18MB61-ANU-V2
PULSOTRONIC KJ5-M18MB50-ANU
PULSOTRONIC KJ9-M30MB50-ANU-V2
PULSOTRONIC KJ9-M30MB40-ANU
PULSOTRONIC KJ3-M12MB60-ANI-V2
PULSOTRONIC KJ3-M12MB50-ANI
PULSOTRONIC KJ5-M18MB61-ANI-V2
PULSOTRONIC KJ5-M18MB50-ANI
PULSOTRONIC KJ9-M30MB50-ANI-V2
PULSOTRONIC KJ9-M30MB40-ANI
PULSOTRONIC KJ20-Q40KN-ANU
PULSOTRONIC KJ14-M30MN80-ANU-4BIT-X0409
