BAMO雙穩態開關BSM502 585200技術參數
TECHNICAL DATA | |
Nominal voltage | 4V...250V AC, 4V...30V DC |
Nominal current | 1mA...3A (AC or DC) |
Switch principle | Magnetically actuated microswitch with changeover contact |
Minimum distance | 25mm between two switching points To do this, mount the switches offset by 90° in each case |
Wire cross-section | 1.5mm2 |
Electrical connection | 3-pole valve connector according to DIN EN 175301-803-A additional protective earth connection (PE), Observe low-voltage guidelines |
Ambient temperature | -20°C...+90°C |
Material | Polycarbonate (PC) |
Mounting | Stainless steel or plastic clamp |
Protection class | IP65 according to EN 60 529 |
BAMO雙穩態開關BSM502介紹
BSM 502 不銹鋼夾具，適用于直徑?25...?40mm；以及用于直徑?25...100mm的PA6扎帶。

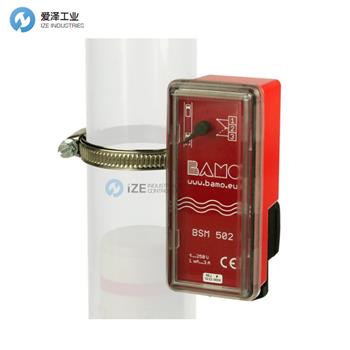

BSM 502 with stainless steel clamp ?25...?40mm and PA6 cable tie for ?25...100mm
一款磁性浮子或平衡塊驅動無接觸式微動開關。當浮子或平衡塊經過雙穩態開關時，撥動開關會改變其位置，并保持在該位置，直到再次被經過。該開關兼容提供的所有浮子和平衡塊。
它設計用于安裝在線型液位指示器（如Stringline SFA...）、觀察玻璃液位指示器（如GNR5 / KNR）或懸臂式液位指示器（如FS4）上。
A magnetic float or counterweight actuates a microswitch in the unit without contact.
When the float or counterweight passes the bistable switch, the toggle switch changes its position and remains in this position until it is passed again. The switch works with all floats and counterweights available from us.
It is designed for mounting on string level indicators type Stringline SFA..., sight glass level indicators type GNR5 / KNR or overhang level indicators type FS4.
BAMO雙穩態開關其他常用型號：
BAMO BSM 502 585200
BAMO BSM 502 / 63 585203
BAMO BISTABLE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
